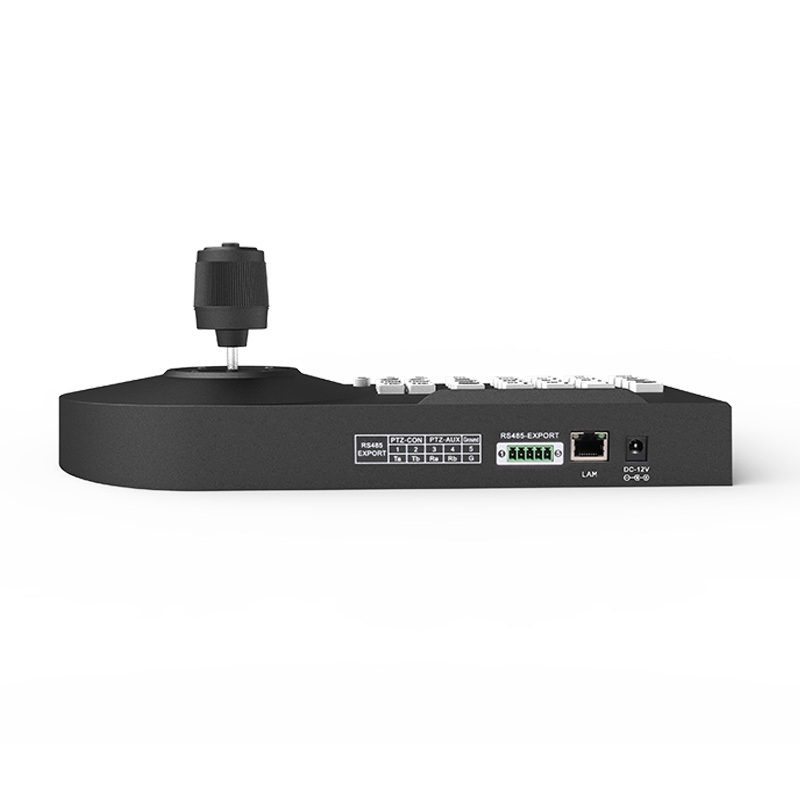

KEYMA32DH series network or RS485 dual mode Pan Tilt Head and PTZ camera control operation keyboard

KEYMA32DH series network or RS485 dual mode Pan Tilt Head and PTZ camera control operation keyboard

share

KEYMA32DH series network or RS485 dual mode Pan Tilt Head and PTZ camera control operation keyboard

  • Detail
  • Parameters

█ Specifications



Model
JSA-KEYMA32DH
Control interface
RS485*1
RJ4510/100Mb*1
Protocol
RJ45 interface-->Onvif 2.4
RS485 interface-->Pelco-d,Pelco-p protocol
Configuration method
RJ45 interface-->B/S browser
RS485 interface-->panel buttons
Control operation
Camera:zoom,zoom,aperture
PTZ:functions such as horizontal or vertical rotation,
   A/B line sweep,presetposition,cruise and track setting and calling
Power
DC12V/1A
Operating temperature
0℃~55℃
Operating humidity
20%~80%;non-condensing
Total Weight
≈1300g
Overall size
306*150*99mm
Package Size
327*180*126mm


█ Size


█ Keyboard Key panel diagram


█ RS485 Connection reference diagram



█ Network Connection reference diagram



Delivery cycle
1~4 W/D
Order model
JSA-KEYMA32DH
