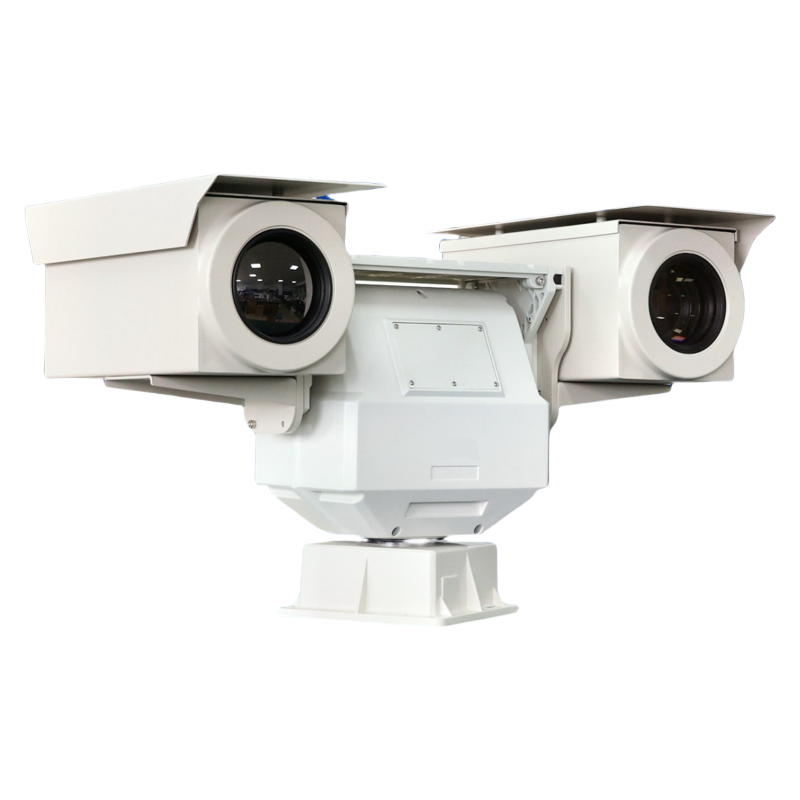

Model | JSA-8HSO890DLA Series |
Camera | Image Sensor | 1/2.8" Progressive CMOS Or 1/1.8" Progressive CMOS |
Effective Pixels | 1920×108、2592×1520、3840×2160Optional |
Lens multiple | 62~120X Optics,16X DigitalOptional |
Wide dynamic | 120dB |
Focal length | 610mm~1360mm Optional |
Minimum illumination | Color：0.1Lux；Black and white：0.01Lux |
Automatic control | Auto white balance, focus, exposure, noise reduction, contrast enhancement |
Signal to noise ratio | ≥50db |
Function | Laser movement | 3000~5200m Synchronized laser/808nm[Optional 850、940 Or 1550±10nm] |
Network protocol | Onvif,IPv4,HTTP,FTP,RTSP,DNS,NTP,RTP,TCP,UDP,IGMP,ARP, OptionalRTMP and GB/T28181 |
Compressed standard | H.265/ H.264 |
Multiple code streams | Full HD+ FULL D1 |
Data storage | OptionalBuilt-in TF card local storage |
Insight | Optional：Motion Detection, Intrusion Detection Or Perimeter Detection |
Pan Angle | 0°~360° |
Tilt Angle | -60°~ 60°,Optional customization -45°~45° or -90°~90° |
Pan Speed | 0.01°~30°/s,Optional customization: 0.01 °~60 °/s |
Tilt Speed | 0.01°~15°/s ,Optional customization: 0.01 °~30 °/s |
Preset | 200 |
Cruise | 1 |
A/B line scan | Support |
Memory as Power off | Support |
Preset Accuracy | ±0.01° |
Telephoto speed limit | Support |
RS485 | Optional/ Support PELCO_D |
BNC Output | BNC interface/optional |
Network Interface | 10/100M*1 |
Other | Temperature/ humidity | -35~ 65℃/ 0～90%(No condensation) |
Power supply | DC48V/ ≤250W |
Protection level | IP66 |
| Wiper | Not included in standard configuration, optional |
Size | 805×450×680mm Or Customization |
Weight | ≈50kg |
