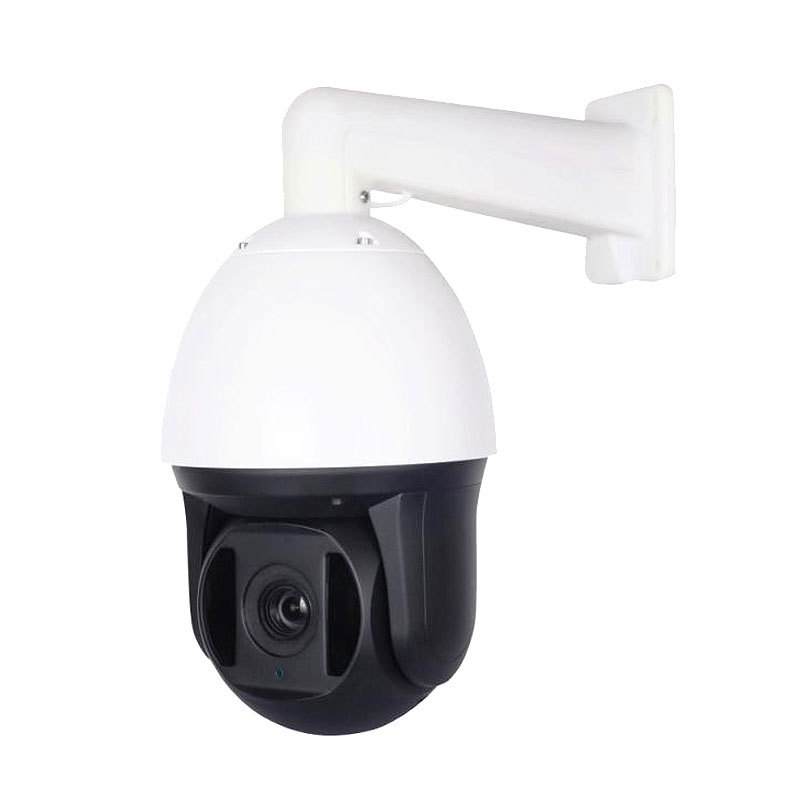

Model | JSA-8HSOBT7 Series |
Camera
| Image Sensor | 1/2.8" Progressive CMOS or 1/1.8" Progressive CMOS |
Effective Pixels | 1920×1080、2592×1520、3840×2160 Optional |
Lens multiple | 26~32X Optics,16X Digital Optional |
Wide dynamic | 120dB |
Focal length | 120mm~150mm |
Minimum illumination | Color：0.1Lux；Black and white：0.01Lux |
Automatic control | Auto white balance, focus, exposure, noise reduction, contrast enhancement |
Signal to noise ratio | ≥50db |
Function | LED fill light | 850nm LED light； Irradiation distance≤120m |
Network protocol | Onvif,IPv4,HTTP,FTP,RTSP,DNS,NTP,RTP,TCP,UDP,IGMP,ARP, Optional RTMP and GB/T28181 |
Compressed standard | H.265/ H.264 |
Multiple code streams | Full HD + FULL D1 |
Data storage | Optional Built-in TF card local storage |
Insight | Optional：Motion detection, intrusion detection or perimeter detection |
Pan Angle | 0°~360° |
Tilt Angle | 0°~ 90° |
Pan Speed | Standard version：0.01°~100°/s，High speed version：0.01°~300°/s |
Tilt Speed | Standard version：0.01°~30°/s，High speed version：0.01°~80°/s |
Preset | 200 |
Cruise | 1 |
A/B line scan | Support |
Memory as Power off | Support |
Preset Accuracy | ±0.01° |
Telephoto speed limit | Support |
RS485 | Optional output/ Support PELCO_D protocol |
BNC Output | BNC*1 / Optional |
Network Interface | 10/100M*1 |
Other | Temperature / humidity | -30 ~ 60℃ / 0～90%(No condensation) |
Power supply | DC12V/4A, [Standby operation≤36W、peak≤48W] |
Protection level | IP66 |
Size | 204*324 |
Weight | ≈4.3kg |
