aiptz 5Kg horizontal single-axis pan tilt motorized head,RS485 interface support Pelco PTZ protocol

Detail

Parameters

█ Specifications

Model	JSA-EFPTZDU20P5
Max. Load	≤5Kg
Bearing mode	Top load/(side load compatible)
Driving mode	Gear drive

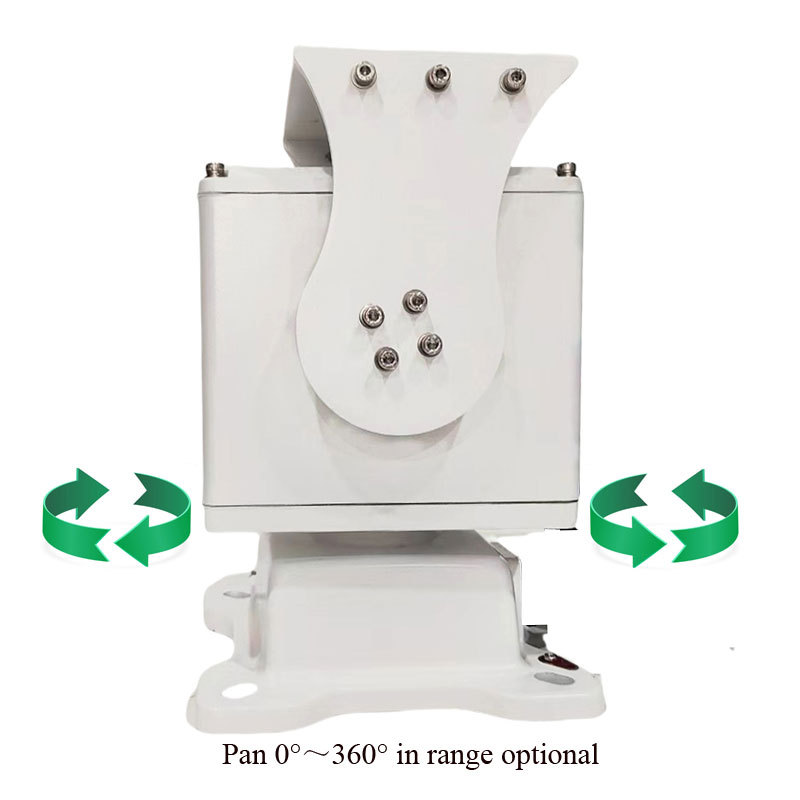

Pan Angle	0°～360°
Pan Speed	0.1°～18°/S
Preset Accuracy	±0.1°
Preset	≤200
Auto cruise	Support
Interfaced	RS485
Protocol	Pelco_D
Baud Rate	9600
Address	1
Bottom cable	DC9～36V1、RS4851、RJ451、GND1；Optional other lines can be customized on demand
Top cable	DC24V1、DC12V1、RS4851、RJ451、GND*1；Optional other lines can be customized on demand
Angle return	Optional Angle and orientation data query return
Input voltage range	DC9～36V 50/60HZ；≤15W
Operating temperature	-40℃~+70℃
Working humidity	<90%RH
Lightning protection	Input voltage range supply ≤4000V, communication and video signal ≤2000V
Protection level	Standard configurationIP66; Optional Anti-salt spray treatment
Weight	≈4kg
Size	154×270mm

█ Size

█ Order model

Model	Load /Kg	Angle range	Speed range	Preset Accuracy	Angle feedback	Top outlet	Bottom cable entry
		Pan	Pan
JSA-EFPTZDU20P5	5	0°~360°	0.1°～18°/S	±0..1°	Optional	RS4851 DC24V1 DC12V1 GND1 RJ45*1[100Mb]	RS4851 DC9~36V1 GND1 RJ451[100Mb]
Project customization	Based on this standard model, we can customize the Pan or Tilt angle range, bottom input cable, top output cable, software, etc. according to the customer's individual needs.
