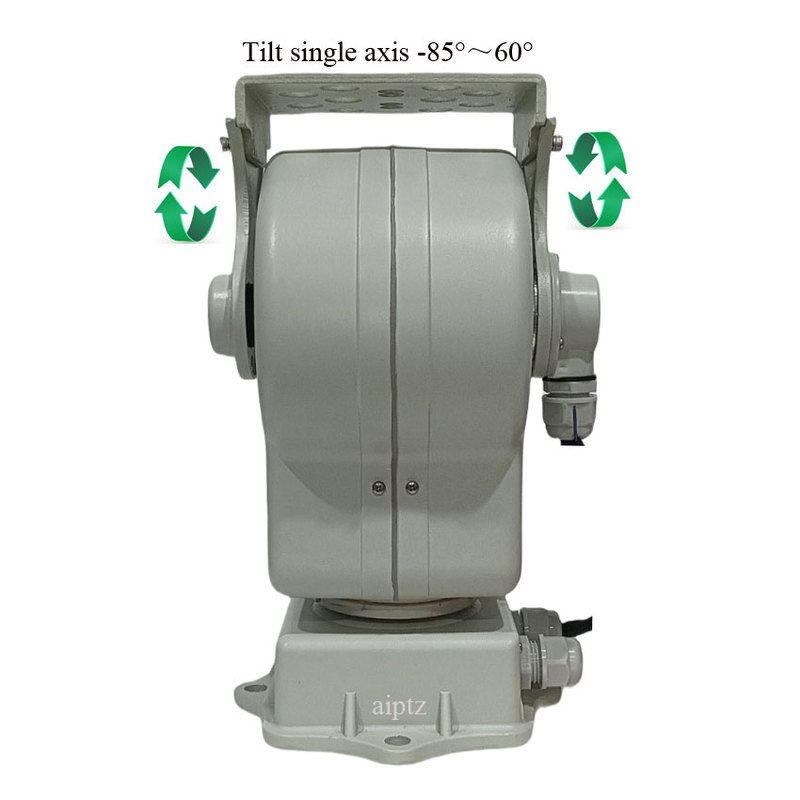

aitpz 5Kg Vertical single-axis 5Kg pan tilt head,tilt -85°～60° support RS485 Pelco PTZ protocol

Detail

Parameters

█ Specifications

Model	JSA-EFPTZDU30LT Series
Max Load	≤5Kg
Bearing mode	Top load/(side load compatible)
Driving mode	Gear drive
Pan Angle	0°～360°
Tilt Angle	-85°～+60°
Pan Speed	1°～9°/S，Optional 0.1°～9°/S
Tilt Speed	1°～5°/S，Optional 0.1°～5°/S
Preset Accuracy	± 1° / optional ± 0.1°
Preset	≤80
Auto cruise	Support
Interfaced	RS485
Protocol	Pelco_D
Baud Rate	9600
Address	1
Bottom cable	DC10~18V1、RS4851、RJ451、GND1
Top cable	DC12V2、RS4851、RJ451、GND1
Angle return	Not support
Input voltage range	DC10~18V 50/60HZ；≤20W
Operating temperature	-30℃~+60℃
Working humidity	<90%RH
Lightning protection	Input voltage range supply ≤4000V, communication and video signal ≤2000V
Prevention grade	IP66
Weight	≈4.8kg
Size	183mm(L)×167mm(W)×285mm(H)

█ Size

█ Order model

Model	Load /Kg	Angle range	Speed range	Preset Accuracy	Angle feedback	Top outlet	Bottom cable entry
		Tilt	Tilt
JSA-EFPTZDU30LT5	5	-85°~60°	1°～5°/S	±.1°	Optional	GND1 RS4851 DC12V2 RJ451[100Mb]	GND1 RS4851 DC10~18V1 RJ451[100Mb]
JSA-EFPTZDU30LTH5			0.1°～5°/S	±.0.1°
Project customization	Based on this standard model, we can customize the Pan or Tilt angle range, bottom input cable, top output cable, software, etc. according to the customer's individual needs.
