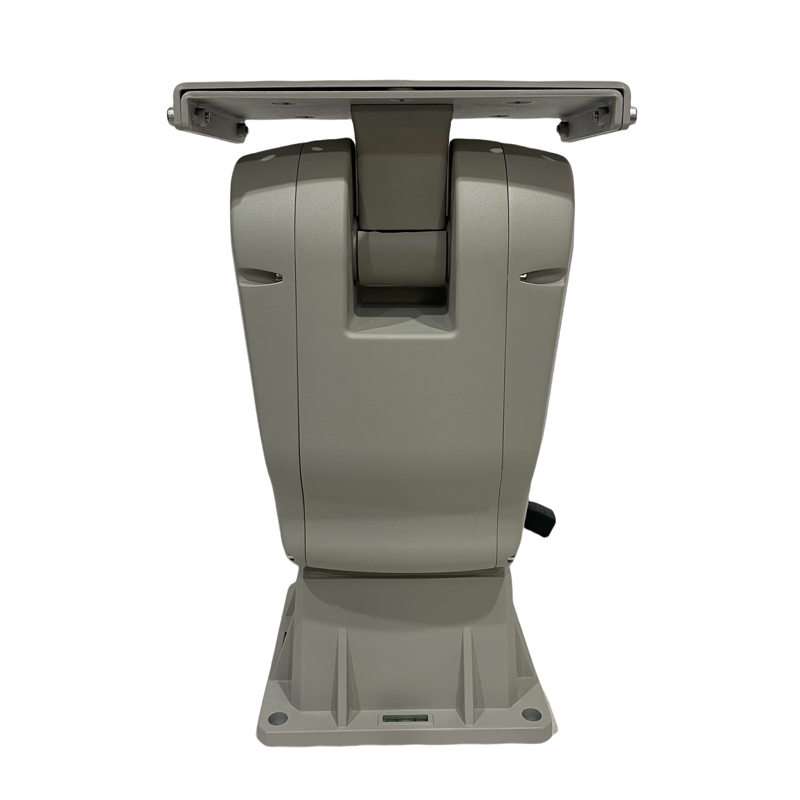

10kg precision pan-tilt system,suitable ptz cameras-radars pan tilt head and robot tilt vs pan,etc.

Detail

Parameters

█ Specifications

Model	JSA-EFPTZDU41 Series
Max. Load	≤10kg
Bearing mode	Top load/(side load compatible)
Driving mode	Worm gear drive, timing belt drive hybrid mode
Pan Angle	0°～360°
Tilt Angle	-90°~40°
Pan Speed	0.1～100°/S, [Customizable0.01～100°/S]
Tilt Speed	0.1～40°/S, [Customizable0.01～40°/S]
Preset Accuracy	±0.1°，[Customizable±0.01°]
Preset	≤200
Auto cruise	Support
Interfaced	RS485
Protocol	Pelco_D
Baud Rate	9600
Address	1
Bottom cable	AC24V1、RS4851、RJ451、GND1；Optional other lines can be customized on demand
Top cable	AC24V1、DC12V1、RS4851、RJ451、GND*1；Optional other lines can be customized on demand
Angle return	Optional
Input voltage range	AC24V±20% 50/60HZ；≤70W
Operating temperature	-35℃~+65℃
Working humidity	<90%RH
Lightning protection	Input voltage range supply ≤4000V, communication and video signal ≤2000V
Prevention grade	Standard configurationIP66; Optional Anti-salt spray treatment
Weight	≈10kg
Size	214(L)213(W)360(H)

█ Size

█ Order model

Model	Load /Kg	Angle range		Speed range		Preset Accuracy	Angle feedback	Top outlet	Bottom cable entry
		Pan	Tilt	Pan	Tilt
JSA-EFPTZDU4110	10	0°~360°	-90°~40°	0.1°～100°/S	0.1°～40°/S	±0.1°	Query postback	RS4851 AC24V1 DC12V1 GND1 RJ45*1[100Mb]	RS4851 AC24V1 GND1 RJ451[100Mb]
JSA-EFPTZDU41H10				0.01°～100°/S	0.01°～40°/S	±0.01°
Project customization	Based on this standard model, we can customize the Pan or Tilt angle range, bottom input cable, top output cable, software, etc. according to the customer's individual needs.
