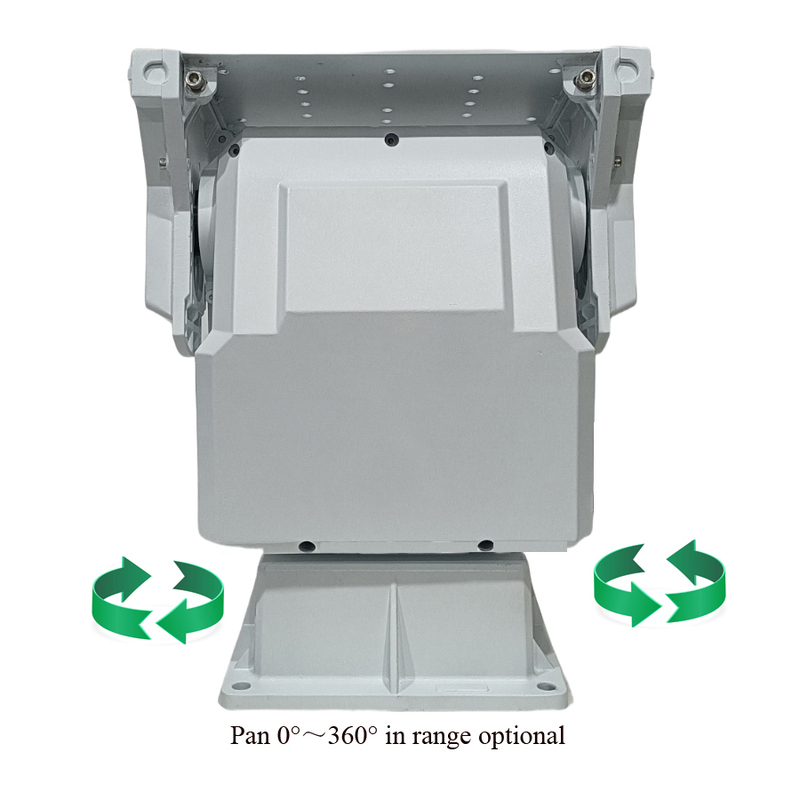

20Kg horizontal single-axis pan tilt head,worm gear transmission-RS422 or RS485 Pelco PTZ protocol

Detail

Parameters

▆ Specifications

Model	JSA-EFPTZDU61P Series
Max. Load	≤20kg
Bearing mode	Top load/(side load compatible)
Driving mode	Worm gear drive, timing belt drive hybrid mode
Pan Angle	0°～360°
Pan Speed	0.1°～30°/S or 0.01°～30°/S
Preset Accuracy	±0.1°，[Customizable±0.01°]
Preset	≤200
Auto cruise	Support
Interfaced	RS485 Optional RS422
Protocol	Pelco_D
Baud Rate	9600
Address	1
Bottom cable	DC24V1、RS4851、RJ451、GND1；Optional other lines can be customized on demand
Top cable	DC24V1、DC12V1、RS4851、RJ451、GND*1；Optional other lines can be customized on demand
Angle return	Optional
Input voltage range	DC24V±20% 50/60HZ；≤85W(No heating element)；Optional ≤115W(With heating element)
Operating temperature	Standard configuration：-25℃～+65℃；Optional With heating element-35℃~+65℃
Working humidity	<90%RH
Lightning protection	Input voltage range supply ≤4000V, communication and video signal ≤2000V
Prevention grade	Standard configurationIP66; Optional Anti-salt spray treatment
Weight	≈17kg
Size	300mm×206mm×365mm

▆ Size

▆ Order model

Model	Load /Kg	Angle range	Speed range	Preset Accuracy	Angle feedback	Top outlet	Bottom cable entry
		Pan	Pan
JSA-EFPTZDU61P20	20	0°~360°	0.1°～30°/S	±0.1°	Query postback	RS4851 DC24V1 DC12V1 GND1 RJ45*1[100Mb]	RS4851 DC24V1 DC12V1 GND1 RJ45*1[100Mb]
JSA-EFPTZDU61PH20	20	0°~360°	0.01°～30°/S	±0.01°
Project customization	Based on this standard model, we can customize the Pan or Tilt angle range, bottom input cable, top output cable, software, etc. according to the customer's individual needs.
