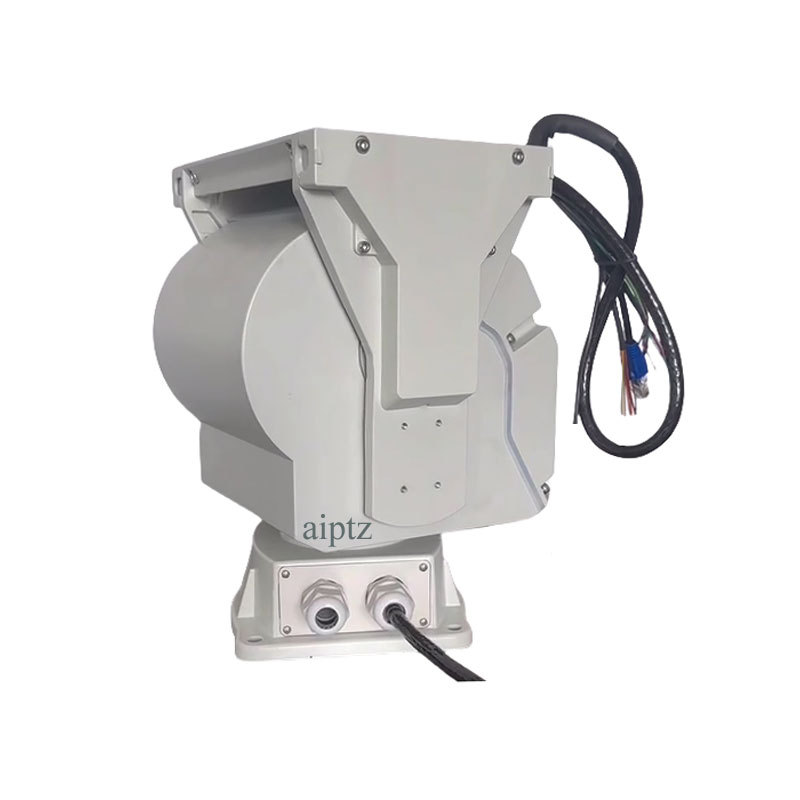

26~30Kg pan and tilt head,RS485/422 interface, supports Pelco_D protocol and power-off self-locking

Detail

Parameters

█ Specifications

Model	EFPTZDU51A Series
Max. Load	≤30Kg
Bearing mode	Top load/(side load compatible)
Driving mode	Worm gear drive, timing belt drive hybrid mode
Pan Angle	0°～360°
Tilt Angle	-75°~40°、-40°~40° Optional ; Customizable -90°~40°
Pan Speed	0.1°～60°/S or 0.01°～60°/S
Tilt Speed	0.1°～30°/S or 0.01°～30°/S
Preset Accuracy	±0.1°，[Customizable ±0.01°]
Preset	≤200
Auto cruise	Support
Interfaced	RS485, optional RS422
Protocol	Pelco_D
Baud Rate	9600
Address	1
Bottom cable	AC24V1、RS4851、RJ451、GND1；Optional other lines can be customized on demand
Top cable	AC24V1、DC12V1、RS4851、RJ451、GND*1；Optional other lines can be customized on demand
Angle return	Support query feedback, customizable real-time feedback [RS422 communication port]
Remote control	Only the -P model integrates a wireless remote control module, and the remote control distance is ≤ 100m in an unobstructed environment
Network control	-N model only: supports up/down, left/right rotation, preset position setting/deletion/calling operations based on B/S mode
Input voltage range	AC24V±20% 50/60HZ；≤80W
Operating temperature	-35℃~+65℃
Working humidity	<90%RH
Lightning protection	Input voltage range supply ≤4000V, communication and video signal ≤2000V
Prevention grade	Standard configurationIP66; Optional Anti-salt spray treatment
Weight	≈14kg
Size	249mm×230mm×315mm

█ Size

█ Order model

Model	Type	Load /Kg	Angle range		Speed range		Preset Accuracy	Angle feedback	Top outlet	Bottom cable entry
			Pan	Tilt	Pan	Tilt
JSA-EFPTZDU51A30	Standard version	≤30Kg	0°~360°	-40°~40°	0.1°～60°/S	0.1°～30°/S	±0.1°	Query postback	GND1 AC24V1 DC12V1 RS4851 RJ45*1[100Mb]	GND1 AC24V1 RS4851 RJ451[100Mb]
JSA-EFPTZDU51A26		≤26Kg		-75°~40°
JSA-EFPTZDU51A30-P	Remote control version	≤30Kg		-40°~40°
JSA-EFPTZDU51A26-P		≤26Kg		-75°~40°
JSA-EFPTZDU51A30-N	Network control version	≤30Kg		-40°~40°
JSA-EFPTZDU51A26-N		≤26Kg		-75°~40°
JSA-EFPTZDU51AH30	High-precision version	≤30Kg		-40°~40°	0.01°～60°/S	0.01°～30°/S	±0.01°
JSA-EFPTZDU51AH26		≤26Kg		-75°~40°
Project customization	Based on this standard model, we can customize the Pan or Tilt angle range, bottom input cable, top output cable, software, etc. according to the customer's individual needs. For customization, please contact: www.aiptz.com、aiptz@jsa-cctv.com , WeChat：A380487881
