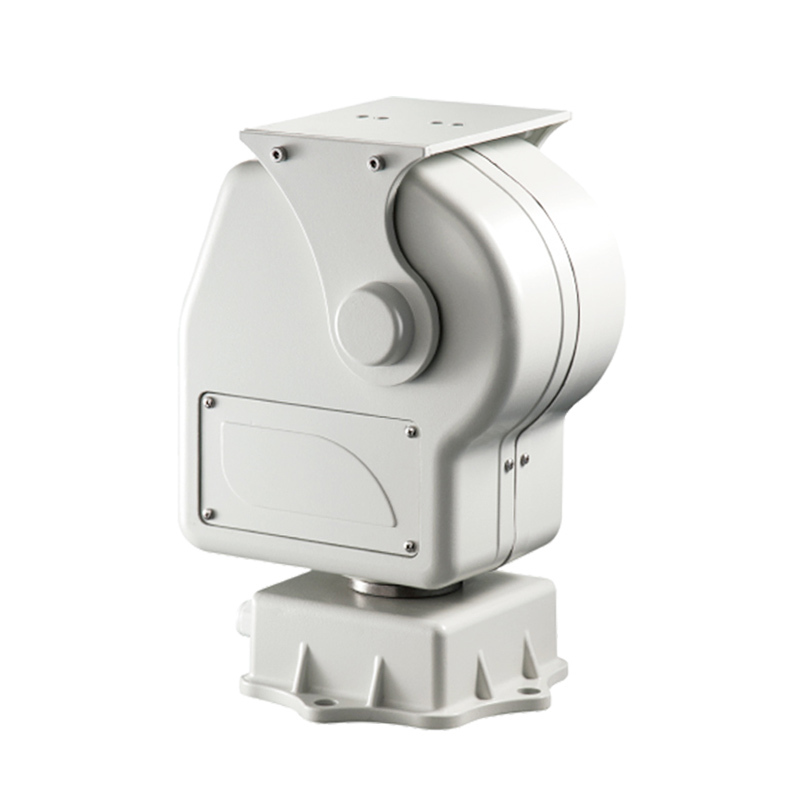

5~7kg light load pan and tilt head,suitable ptz cameras-radars pan tilt and robot tilt vs pan,etc.

Detail

Parameters

█ Specifications

Model	JSA-EFPTZDU30L07 / JSA-EFPTZDU30LH07	JSA-EFPTZDU30L05 / JSA-EFPTZDU30LH05
Max Load	≤7Kg	≤5Kg
Bearing mode	Top load/(side load compatible)
Driving mode	Gear drive
Pan Angle	0°～360°
Tilt Angle	-85°～+20°	-85°～+60°
Pan Speed	1°～9°/S，Optional 0.1°～9°/S
Tilt Speed	1°～5°/S，Optional 0.1°～5°/S
Preset Accuracy	± 1° / optional ± 0.1°
Preset	≤80
Auto cruise	Support
Interfaced	RS485
Protocol	Pelco_D
Baud Rate	9600
Address	1
Bottom cable	AC24V1、RS4851、RJ451、GND1	DC10~18V1、RS4851、RJ451、GND1
Top cable	AC24V1、DC12V1、RS4851、RJ451、GND*1	DC12V2、RS4851、RJ451、GND1
Angle return	Not support
Input voltage range	AC24V 50/60HZ；≤80W	DC10~18V 50/60HZ；≤20W
Operating temperature	-30℃~+60℃
Working humidity	<90%RH
Lightning protection	Input voltage range supply ≤4000V, communication and video signal ≤2000V
Prevention grade	IP66
Weight	≈4.8kg
Size	183mm(L)×167mm(W)×285mm(H)

█ Size

█ Order model

Model	Load /Kg	Angle range		Speed range		Preset Accuracy	Angle feedback	Top outlet	Bottom cable entry
		Pan	Tilt	Pan	Tilt
JSA-EFPTZDU30L05	5	0°~360°	-85°~60°	1°～9°/S	1°～5°/S	±.1°	Optional	GND1 RS4851 DC12V2 RJ451[100Mb]	GND1 RS4851 DC10~18V1 RJ451[100Mb]
JSA-EFPTZDU30LH05				0.1°～9°/S	0.1°～5°/S	±.0.1°
JSA-EFPTZDU30L07	7		-85°~20°	1°～9°/S	1°～5°/S	±.1°		GND1 RS4851 AC24V1 DC12V1 RJ45*1[100Mb]	GND1 RS4851 AC24V1 RJ451[100Mb]
JSA-EFPTZDU30LH07				0.1°～9°/S	0.1°～5°/S	±.0.1°
Project customization	Based on this standard model, we can customize the Pan or Tilt angle range, bottom input cable, top output cable, software, etc. according to the customer's individual needs.
