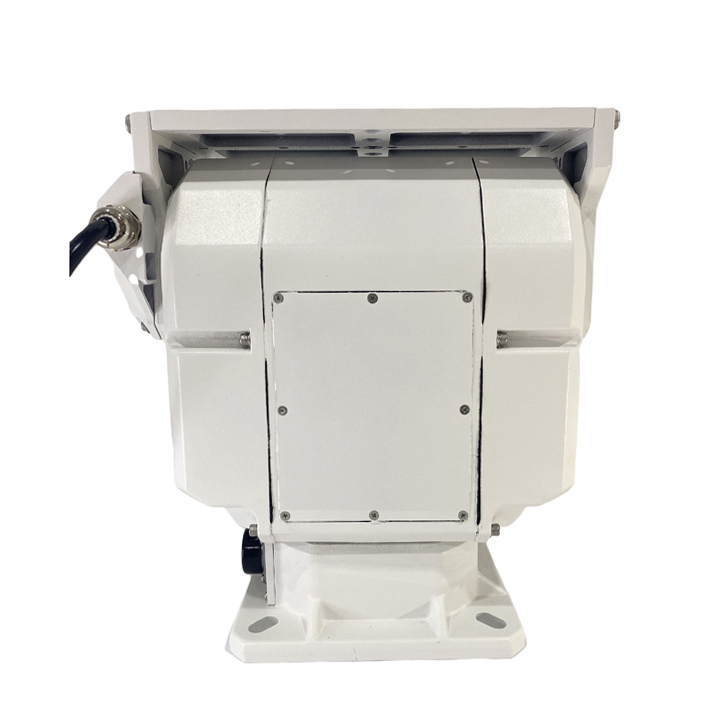

30kg pan tilt positioner-motorized head RS485 interface Pelco PTZ protocol,power-off self-locking

Detail

Parameters

█ Specifications

Model	JSA-EFPTZDU32 Series
Max. Load	≤30Kg
Bearing mode	Top load/(side load compatible)
Driving mode	Worm gear drive, timi ng belt drive hybrid mode
Pan Angle	0°～360°
Tilt Angle	-25°~25°、-45°~45° Optional
Pan Speed	0.1°～15°/S or 0.01°～15°/S
Tilt Speed	0.1°～10°/S or 0.01°～10°/S
Preset Accuracy	±0.1°，[Customizable±0.01°]
Preset	≤200
Auto cruise	Support
Interfaced	RS485
Protocol	Pelco_D
Baud Rate	9600
Address	1
Bottom cable	DC24V1、RS4851、RJ451、GND1；Optional other lines can be customized on demand
Top cable	DC12V1、RS4851、RJ451、GND1；Optional other lines can be customized on demand
Angle return	Optional Angle and orientation data query return
Input voltage range	DC24V±20% 50/60HZ；≤45W
Operating temperature	-35℃~+65℃
Working humidity	<90%RH
Lightning protection	Input voltage range supply ≤4000V, communication and video signal ≤2000V
Prevention grade	Standard configurationIP66; Optional Anti-salt spray treatment
Weight	≈12kg
Size	272mm×170mm×306mm（L×W×H）

█ Size

█ Order model

Model	Load /Kg	Angle range		Speed range		Preset Accuracy	Angle feedback	Top outlet	Bottom cable entry
		Pan	Tilt	Pan	Tilt
JSA-EFPTZDU323025	30	0°~360°	-25°~25°	0.1°～15°/S	0.1°～10°/S	±0.1°	Optional	RS4851 DC24V1 DC12V1 GND1 RJ45*1[100Mb]	RS4851 DC24V1 GND1 RJ451[100Mb]
JSA-EFPTZDU323045			-45°~45°	0.1°～10°/S	0.1°～5°/S
JSA-EFPTZDU32H3045		0°~360°	-45°~45°	0.01°～10°/S	0.01°～5°/S	±0.01°
Project customization	Based on this standard model, we can customize the Pan or Tilt angle range, bottom input cable, top output cable, software, etc. according to the customer's individual needs.
