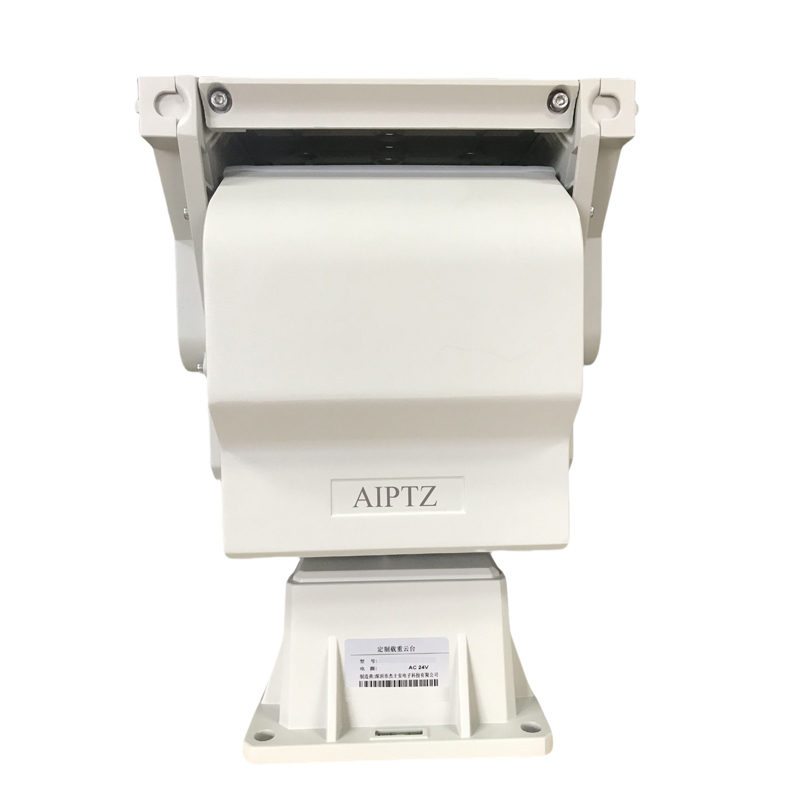

30~35Kg pan tilt motorized head,RS485 interface, worm gear transmission and power-off self-locking

Detail

Parameters

█ Specifications

Model	JSA-EFPTZDU54 Series
Max. Load	30kgor 35kg
Bearing mode	Top load/(side load compatible)
Driving mode	Worm gear drive, timing belt drive hybrid mode
Pan Angle	0°～360°
Tilt Angle	-45°~40°or -30°~30°Optional
Pan Speed	0.1°～20°/Sor 0.01°～20°/S
Tilt Speed	0.1°～10°/Sor 0.01°～10°/S
Preset Accuracy	±0.1°，[Customizable±0.01°]
Preset	≤200
Auto cruise	Support
InterfacedRS485, optional RS422	RS485, optional RS422
Protocol	Pelco_D
Baud Rate	9600
Address	1
Bottom cable	AC24V1、RS4851、RJ451、GND1；Optional other lines can be customized on demand
Top cable	AC24V1、DC12V1、RS4851、RJ451、GND*1；Optional other lines can be customized on demand
Angle return	Optional
Input voltage range	AC24V±20% 50/60HZ；≤100W
Operating temperature	-35℃~+65℃
Working humidity	<90%RH
Lightning protection	Input voltage range supply ≤4000V, communication and video signal ≤2000V
Prevention grade	Standard configurationIP66; Optional Anti-salt spray treatment
Weight	≈17kg
Size	227mm×249mm×362mm

█ Size

█ Order model

Model	Load /Kg	Angle range		Speed range		Preset Accuracy	Angle feedback	Top outlet	Bottom cable entry
		Pan	Tilt	Pan	Tilt
JSA-EFPTZDU5430	30	0°~360°	-45°~40°	0.1°～20°/S	0.1°～10°/S	±0.1°	support	RS4851 AC24V1 DC12V1 GND1 RJ45*1[100Mb]	RS4851 AC24V1 GND1 RJ451[100Mb]
JSA-EFPTZDU5435	35		-30°~30°
JSA-EFPTZDU54H30	30	0°~360°	-45°~40°	0.01°～20°/S	0.01°～10°/S	±0.01°
Project customization	Based on this standard model, we can customize the Pan or Tilt angle range, bottom input cable, top output cable, software, etc. according to the customer's individual needs.
