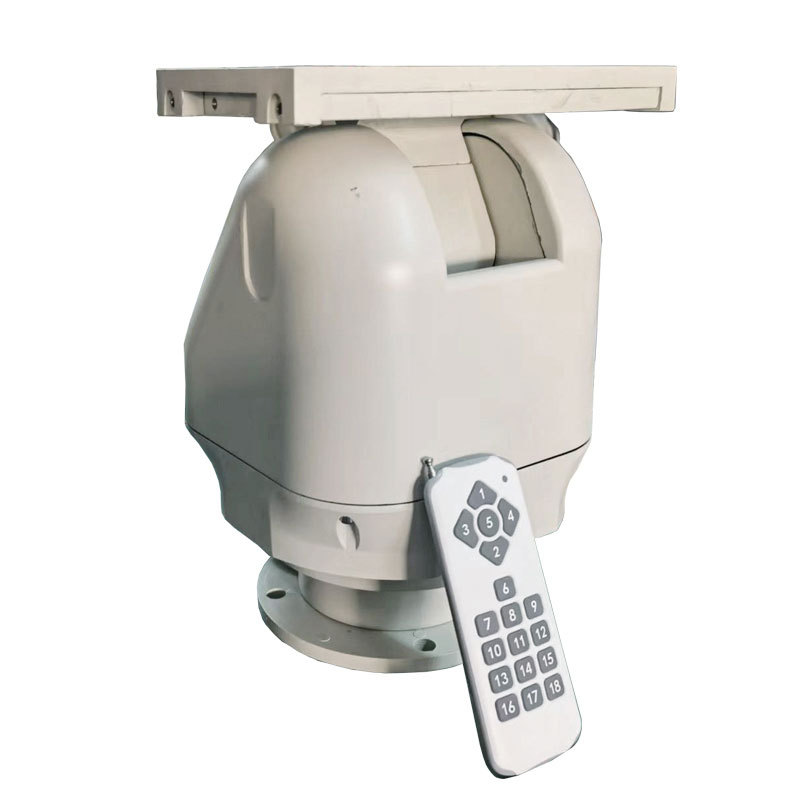

18kg pan tilt head,pan 0°~355° range RS485 interface Pelco PTZ protocol Optional Wireless control

Detail

Parameters

█ Specifications

Model	JSA-EFPTZDU60L Series
Max Load	≤18Kg
Bearing mode	Top load/(side load compatible)
Driving mode	Gear drive
Pan Angle	0°～355°, Optional 0°～360°,
Tilt Angle	-60°～+10°
Pan Speed	9°/S
Tilt Speed	4°/S
Preset Accuracy	±.1°
Preset	≤80
Auto cruise	Support
Interfaced	RS485
Protocol	Pelco_D
Baud Rate	9600
Address	1
Bottom cable	AC24V1、RS4851、RJ451、GND1；Optional other lines can be customized on demand
Top cable	AC24V1、DC12V1、RS4851、RJ451、GND*1；Optional other lines can be customized on demand
Remote control distance	Optional Equipped with wireless remote control; remote control distance ≤ 100 meters in an unobstructed environment
Input voltage range	AC24V 50/60HZ；≤80W
Operating temperature	-30℃~+60℃
Working humidity	<90%RH
Lightning protection	Input voltage range supply ≤4000V, communication and video signal ≤2000V
Prevention grade	IP66
Weight	≈9.5kg
Size	191mm×214mm×291mm

█ Size

█ Order model

Model	Load /Kg	Angle range		Speed range		Preset Accuracy	Angle feedback	Top outlet	Bottom cable entry
		Pan	Tilt	Pan	Tilt
JSA-EFPTZDU60P18	18	0°~355°	-60°~10°	9°/S	4°/S	±.1°	not support	RS4851 AC24V1 DC12V1 GND1 RJ45*1[100Mb]	RS4851 AC24V1 GND1 RJ451[100Mb]
JSA-EFPTZDU60P18R
JSA-EFPTZDU60L18		0°~360°		9°/S	4°/S	±.0.1°
JSA-EFPTZDU60L18R
Project customization	Based on this standard model, we can customize the Pan or Tilt angle range, bottom input cable, top output cable, software, etc. according to the customer's individual needs.

JSA-EFPTZDU60P18R and JSA-EFPTZDU60L18R are shipped with a wireless remote control

█ Package weight

Net weight

≈9.5kg

Max load

≤15~18kg

Delivery cycle

4~8 W/D

Order series

JSA-EFPTZDU60 Series
