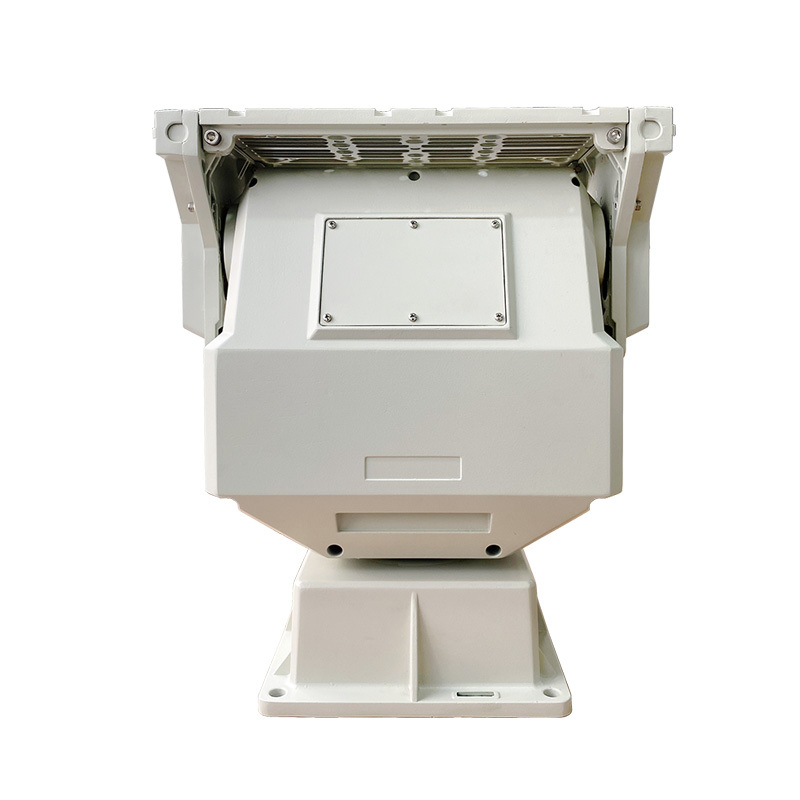

26~70Kg pan-tilt systems,RS485 interface supports Pelco PTZ protocol and power-off self-locking

Detail

Parameters

█ Specifications

Model	JSA-EFPTZDU81 Series
Max. Load	26~70kg
Bearing mode	Top load/(side load compatible)
Driving mode	Worm gear drive, timing belt drive hybrid mode
Pan Angle	0°～360° ，[Customizable0°～355° Range is not continuous]
Tilt Angle	-85°~85°
Pan Speed	0.1°～30°/S or 0.01°～30°/S
Tilt Speed	0.1°～15°/S or 0.01°～15°/S
Preset Accuracy	±0.1°，[Customizable±0.01°]
Preset	≤200
Auto cruise	Support
Auto scan	Support
Interfaced	RS485, optional RS422
Protocol	Pelco_D
Baud Rate	9600
Address	1
Bottom cable	AC24V1、RS4851、RJ451、GND1；Optional other lines can be customized on demand
Top cable	AC24V1、DC12V1、RS4851、RJ451、GND*1；Optional other lines can be customized on demand
Angle return	Standard Configuration Support query return; Optional custom real-time angle return
Input voltage range	AC24V/±20% 50/60HZ；≤85W(No heating element)；Optional ≤115W(With heating element)
Operating temperature	Standard configuration：-25℃～+65℃；Optional With heating element-35℃~+65℃
Working humidity	<90%RH
Lightning protection	Input voltage range supply ≤4000V, communication and video signal ≤2000V
Prevention grade	Standard configurationIP66; Optional Anti-salt spray treatment
Weight	≈21kg
Size	340mm×206mm×390mm

█ Size

█ Order model

Model	Load /Kg	Angle range		Speed range		Preset Accuracy	Angle feedback	Top outlet	Bottom cable entry
		Pan	Tilt	Pan	Tilt
JSA-EFPTZDU8126	26	0°~360°	-85°~85°	0.1°～30°/S	0.1°～15°/S	±0.1°	Query postback	AC24V1 DC12V1 RS4851 RJ451[100Mb] GND*1	AC24V1 RS4851 RJ451[100Mb] GND1
JSA-EFPTZDU8140	40		-60°~60°
JSA-EFPTZDU8150	50		-45°~45°
JSA-EFPTZDU8170	70		-30°~30°
JSA-EFPTZDU81H35	35	0°~360°	-60°~60°	0.01°～30°/S	0.01°～15°/S	±0.01°	Real-time postback
Project customization	Based on this standard model, we can customize the Pan or Tilt angle range, bottom input cable, top output cable, software, etc. according to the customer's individual needs.
