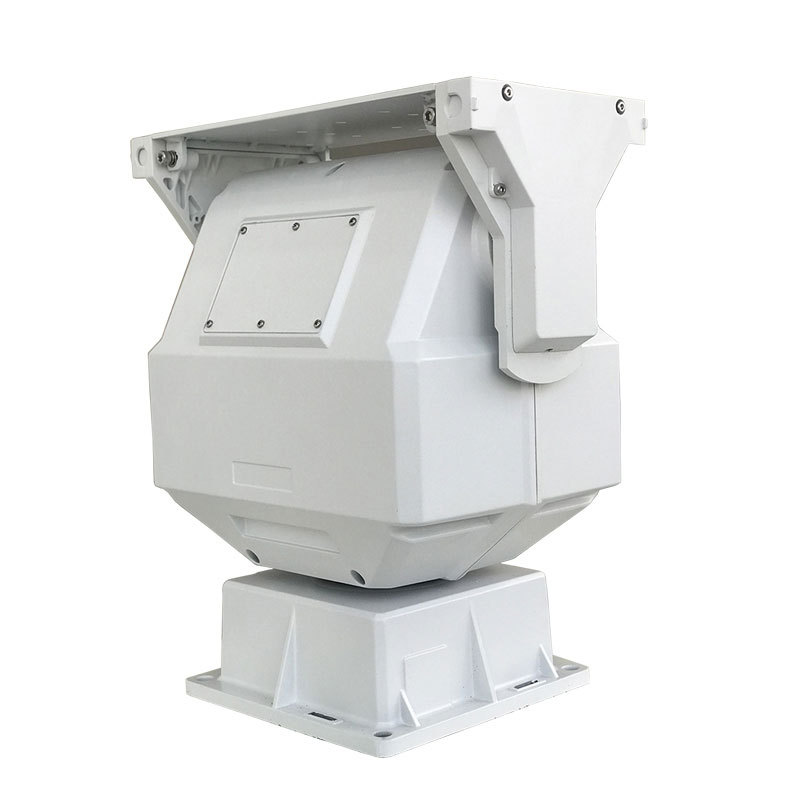

30~80Kg pan tilt motorized head,worm gear transmission RS422 interface Pelco PTZ protocol aiptz hot

Detail

Parameters

█ Specifications

Model	JSA-EFPTZDU81A Series
Max. Load	30~80kg
Bearing mode	Top load/(side load compatible)
Driving mode	Worm gear drive, timing belt drive hybrid mode
Pan Angle	0°～360°，[Customizable0°～355° Range is not continuous]
Tilt Angle	-85°~85°
Pan Speed	0.1°～15°/S or 0.01°～15°/S
Tilt Speed	0.1°～7°/S or 0.01°～7°/S
Preset Accuracy	±0.1°，[Customizable±0.01°]
Preset	≤200
Auto cruise	Support
Interfaced	RS485, optional RS422
Protocol	Pelco_D
Baud Rate	9600
Address	1
Bottom cable	DC24V1、RS4851、RJ451、GND1；Optional other lines can be customized on demand
Top cable	DC24V1、DC12V1、RS4221、RJ451、GND*1；Optional other lines can be customized on demand
Angle return	Support Real-time angle and orientation feedback
Input voltage range	DC24V±20% 50/60HZ；≤85W(No heating element)；Optional ≤115W(With heating element)
Operating temperature	Standard configuration：-25℃～+65℃；Optional With heating element-35℃~+65℃
Working humidity	<90%RH
Lightning protection	Input voltage range supply ≤4000V, communication and video signal ≤2000V
Prevention grade	Standard configurationIP66; Optional Anti-salt spray treatment
Weight	≈21kg
Size	340mm×206 mm×390mm

█ Size

█ Order model

Model	Load /Kg	Angle range		Speed range		Preset Accuracy	Angle feedback	Top outlet	Bottom cable entry
		Pan	Tilt	Pan	Tilt
JSA-EFPTZDU81A30	30	0°~360°	-85°~85°	0.1°～15°/S	0.1°～7°/S	±0.1°	Query postback	DC24V1 DC12V1 RS4851 RJ451[1000Mb] GND*1	DC24V1 RS4221 RJ451[1000Mb] GND1
JSA-EFPTZDU81A40	40		-60°~60°
JSA-EFPTZDU81A60	60		-45°~45°
JSA-EFPTZDU81A80	80		-30°~30°
JSA-EFPTZDU81AH40	40	0°~360°	-60°~60°	0.01°～15°/S	0.01°～7°/S	±0.01°	Real-time postback
Project customization	Based on this standard model, we can customize the Pan or Tilt angle range, bottom input cable, top output cable, software, etc. according to the customer's individual needs.
