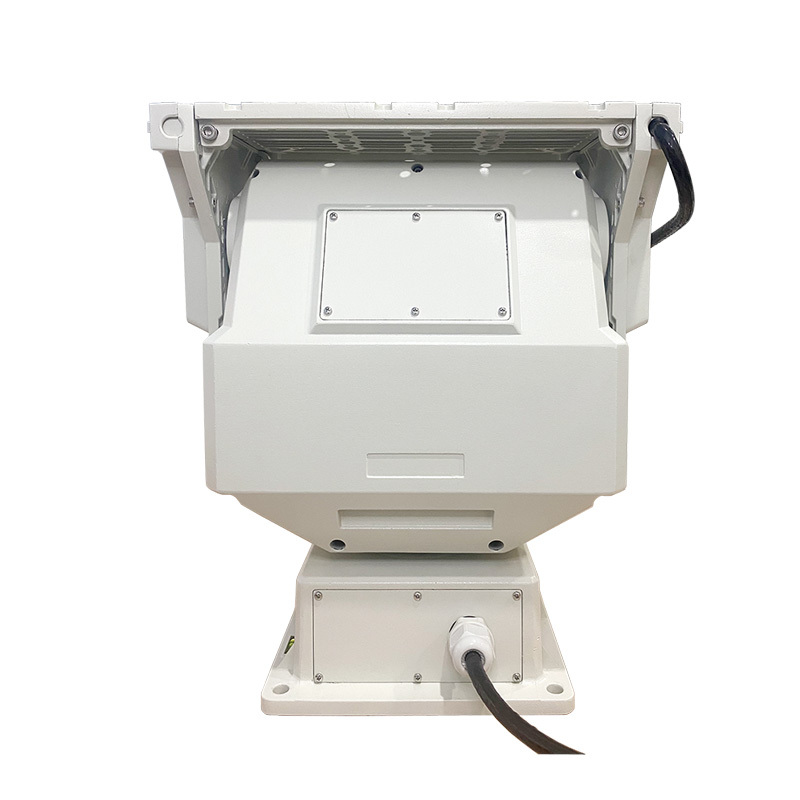

35kg precision pan-tilt system unit,RS422 interface Pelco PTZ protocol and power-off self-locking

35kg precision pan-tilt system unit,RS422 interface Pelco PTZ protocol and power-off self-locking

share

35kg precision pan-tilt system unit,RS422 interface Pelco PTZ protocol and power-off self-locking

  • Detail
  • Parameters


█ Specifications


Model

JSA-EFPTZDU81 Series

Max. Load

26~70kg

Bearing mode

Top load/(side load compatible)

Driving mode

Worm gear drive, timing belt drive hybrid mode

Pan Angle

0°～360° ，[Customizable0°～355° Range is not continuous]

Tilt Angle

-85°~85°

Pan Speed

0.1°～30°/S or 0.01°～15°/S

Tilt Speed

0.1°～15°/S or 0.01°～15°/S

Preset Accuracy

±0.1°，[Customizable±0.01°]

Preset

≤200

Auto cruise

Support

Auto scan

Support

Interfaced
RS485, optional RS422

Protocol

Pelco_D

Baud Rate

9600

Address

1

Bottom cable

AC24V*1、RS485*1、RJ45*1、GND*1；Optional other lines can be customized on demand

Top cable

AC24V*1、DC12V*1、RS485*1、RJ45*1、GND*1；Optional other lines can be customized on demand

Angle return

Standard Configuration Support query return; Optional custom real-time angle return

Input voltage range

AC24V/±20% 50/60HZ；≤85W(No heating element)；Optional ≤115W(With heating element)

Operating temperature

Standard configuration：-25℃～+65℃；Optional With heating element-35℃~+65℃

Working humidity

<90%RH

Lightning protection

Input voltage range supply ≤4000V, communication and video signal ≤2000V

Prevention grade

Standard configurationIP66; Optional Anti-salt spray treatment

Weight

≈21kg

Size

340mm×206mm×390mm


█ Size



█ Order model


Model
Load
   /Kg
Angle range
Speed range
Preset Accuracy
Angle feedback
Top outlet
Bottom cable entry
Pan
Tilt
Pan
Tilt
JSA-EFPTZDU8126
26
0°~360°
-85°~85°
0.1°～30°/S
0.1°～15°/S
±0.1°
Query postback AC24V*1
   DC12V*1
   RS485*1
   RJ45*1[100Mb]
   GND*1
      		AC24V*1
   RS485*1
   RJ45*1[100Mb]
   GND*1

JSA-EFPTZDU8140
40
-60°~60°
JSA-EFPTZDU8150
50
-45°~45°
JSA-EFPTZDU8170
70
-30°~30°
JSA-EFPTZDU81H35
35
0°~360°
-60°~60°
0.01°～30°/S
0.01°～15°/S
±0.01°
Real-time postback
Project customization
Based on this standard model, we can customize the Pan or Tilt angle range, bottom input cable, top output cable, software, etc. according to the customer's individual needs.


█ Package weight




Delivery cycle
6~12 W/D
Order model
JSA-EFPTZDU81H35
