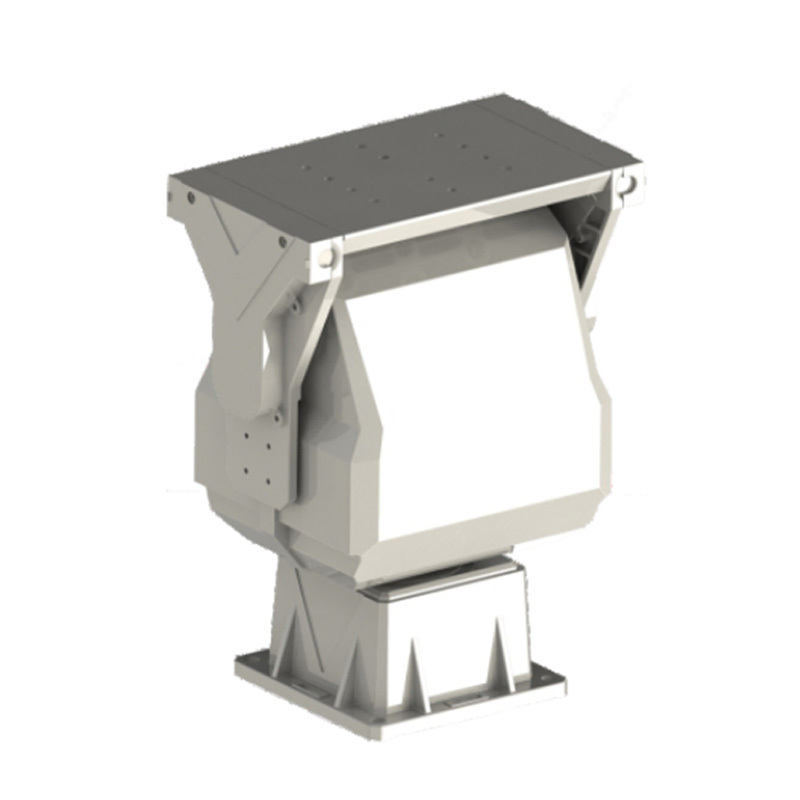

20~40Kg high-speed tilt vs pan unit,worm gear plus timing belt drive RS422 or485 Pelco PTZ protocol

Detail

Parameters

█ Specifications

Model	JSA-EFPTZDU84 Series
Max. Load	≤40kg
Bearing mode	Top load/(side load compatible)
Driving mode	Worm gear drive, timing belt drive hybrid mode
Pan Angle	0°～360°
Tilt Angle	-80°~80°
Pan Speed	0.1°～60°/Sor 0.01°～60°/S
Tilt Speed	0.1°～30°/Sor 0.01°～30°/S
Preset Accuracy	±0.1°，[Customizable±0.01°]
Preset	≤200
Auto cruise	Support
Interfaced	RS485, optional RS422
Protocol	Pelco_D
Baud Rate	9600
Address	1
Bottom cable	AC24V1、RS4851、RJ451、GND1；Optional other lines can be customized on demand
Top cable	AC24V1、DC12V1、RS4851、RJ451、GND*1；Optional other lines can be customized on demand
Angle return	Optional
Input voltage range	AC24V/±20% 50/60HZ；≤100W
Operating temperature	-35℃~+65℃
Working humidity	<90%RH
Lightning protection	Input voltage range supply ≤4000V, communication and video signal ≤2000V
Prevention grade	Standard configurationIP66; Optional Anti-salt spray treatment
Weight	≈16kg
Size	160mm×281mm×367mm

█ Size

█ Order model

Model	Load /Kg	Angle range		Speed range		Preset Accuracy	Angle feedback	Top outlet	Bottom cable entry
		Pan	Tilt	Pan	Tilt
JSA-EFPTZDU8420	20	0°~360°	-80°~80°	0.1°～60°/S	0.1°～60°/S	±0.1°	Optional Query postback	AC24V1 DC12V1 RS4851 GND1 RJ45*1[100Mb]	AC24V1 RS4851 GND1 RJ451[100Mb]
JSA-EFPTZDU8430	30		-60°~60°
JSA-EFPTZDU8440	40		-45°~45°
JSA-EFPTZDU84H20	20	0°~360°	-80°~80°	0.01°～60°/S	0.01°～30°/S	±0.01°	Optional Real-time postback	AC24V1 DC12V1 RS4221 GND1 RJ45*1[100Mb]	AC24V1 RS4221 GND1 RJ451[100Mb]
JSA-EFPTZDU84H30	30		-60°~60°
JSA-EFPTZDU84H40	40		-45°~45°
Project customization	Based on this standard model, we can customize the Pan or Tilt angle range, bottom input cable, top output cable, software, etc. according to the customer's individual needs.
