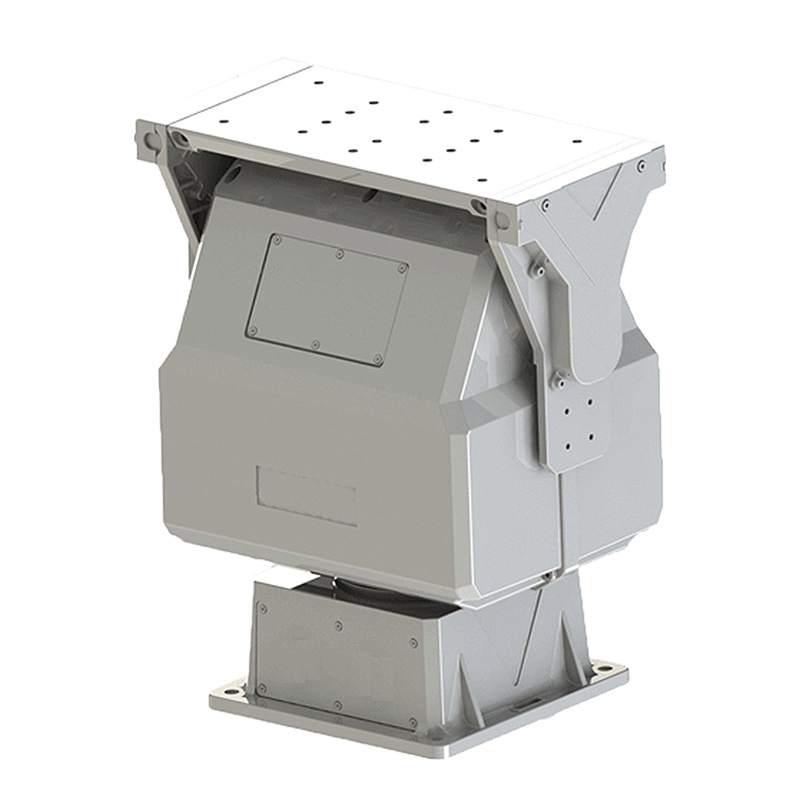

aiptz 50~90Kg heavy duty motorized pan tilt head,worm gear plus timing belt drive,Pelco protocol

Detail

Parameters

█ Specifications

Model	JSA-EFPTZDU89 Series
Max. Load	≤90kg
Bearing mode	Top load/(side load compatible)
Driving mode	Worm gear drive, timing belt drive hybrid mode
Pan Angle	0°～360°
Tilt Angle	-80°~80°
Pan Speed	0.1°～15°/S or 0.01°～15°/S
Tilt Speed	0.1°～7°/S or 0.01°～7°/S
Preset Accuracy	±0.1°，[Customizable±0.01°]
Preset	≤200
Auto cruise	Support
Interfaced	RS485 optional RS422
Protocol	Pelco_D
Baud Rate	9600
Address	1
Bottom cable	DC48V1、RS4851、RJ451、GND1；Optional other lines can be customized on demand
Top cable	DC24V1、DC12V1、RS4851、RJ451、GND*1；Optional other lines can be customized on demand
Angle return	Optional
Input voltage range	DC48V/±20% 50/60HZ；≤200W
Operating temperature	-35℃~+65℃
Working humidity	<90%RH
Lightning protection	Input voltage range supply ≤4000V, communication and video signal ≤2000V
Prevention grade	Standard configurationIP66; Optional Anti-salt spray treatment
Weight	≈33kg
Size	224(L)341(W)403(H)

█ Size

█ Order model

Model	Load /Kg	Angle range		Speed range		Preset Accuracy	Angle feedback	Top outlet	Bottom cable entry
		Pan	Tilt	Pan	Tilt
JSA-EFPTZDU8950	50	0°~360°	-80°~80°	0.1°～15°/S	0.1°～7°/S	±0.1°	Real-time postback	DC24V1 DC12V1 RS4851 GND1 RJ45*1[100Mb]	DC48V1 RS4851 GND1 RJ451[100Mb]
JSA-EFPTZDU8970	70		-60°~60°
JSA-EFPTZDU8990	90		-45°~45°
JSA-EFPTZDU8H950	50	0°~360°	-80°~80°	0.01°～15°/S	0.01°～7°/S	±0.01°
JSA-EFPTZDU89H70	70		-60°~60°
JSA-EFPTZDU89H90	90		-45°~45°
Project customization	Based on this standard model, we can customize the Pan or Tilt angle range, bottom input cable, top output cable, software, etc. according to the customer's individual needs.
