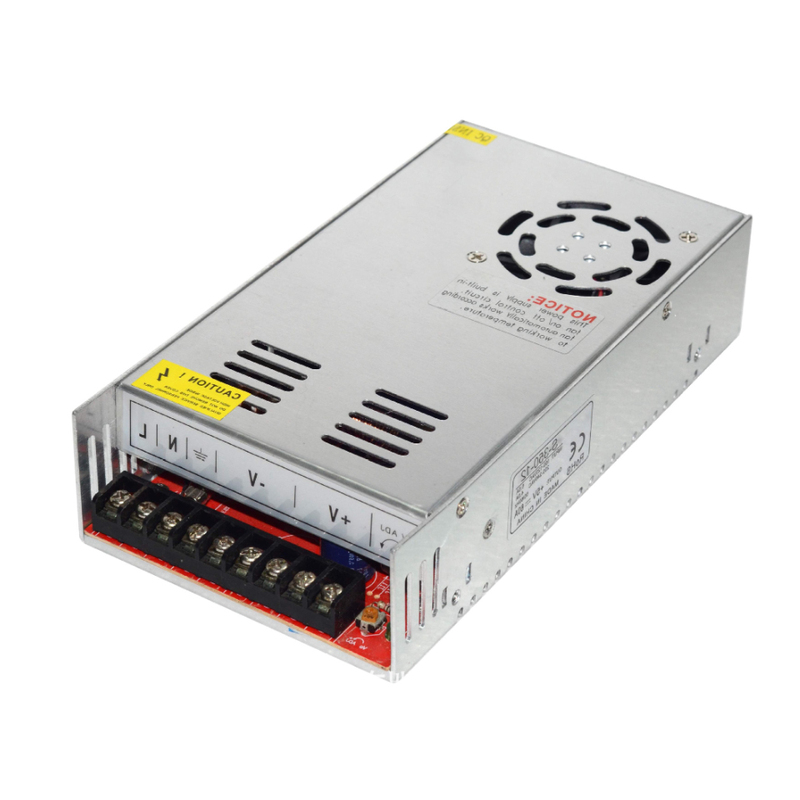

DC24V power adapter, suitable for applications such as dual-spectrum PTZ cameras and Pan Tilt Head

DC24V power adapter, suitable for applications such as dual-spectrum PTZ cameras and Pan Tilt Head

share

DC24V power adapter, suitable for applications such as dual-spectrum PTZ cameras and Pan Tilt Head

  • Detail
  • Parameters



█ Specifications


Model
PDC24V8A
PDC24V10A
PDC24V14A
PDC24V16A
Output DC voltage
DC24V
DC24V
DC24V
DC24V
Rated current
8A
10A
14A
16A
Rated power
200W
250W
350W
400W
Voltage accuracy

±1%

Adjustment range
±10%
Input Voltage range
90~132V/AC、180~264V/AC 47Hz~63Hz
Working current
<3A 110V/AC
   <2A 230V/AC
<4A 110V/AC
<2.5A 230V/AC
<5.2A 110V/AC
<2.8A 230V/AC
<6A 110V/AC
<3.7A 230V/AC
Electric shock
110V/AC   25A, 230V/AC 50A
Protect Overload protection
105%~135% Type: constant current output, +V0 drops to the undervoltage point, cut off the output, reset: power on again
Overvoltage protection
115%~145%
Under voltage protection
40%~45%VOUT
Over temperature protection
RTH3：≥65℃ Fan starts，≤55℃ Fan off，≥85℃ Turn off output
Other    Working temperature
-10℃~+50℃ ，20%~90%RH
Working humidity
20%~90%RH
Storage temperature
-20℃~+85℃
Storage humidity
10%~95%RH
Size
199*99*38mm
215*115*50mm
215*115*50mm
Weight
≈780g
≈930g
≈940g

Delivery cycle
1~4 W/D
Order model
PDC24V Series
