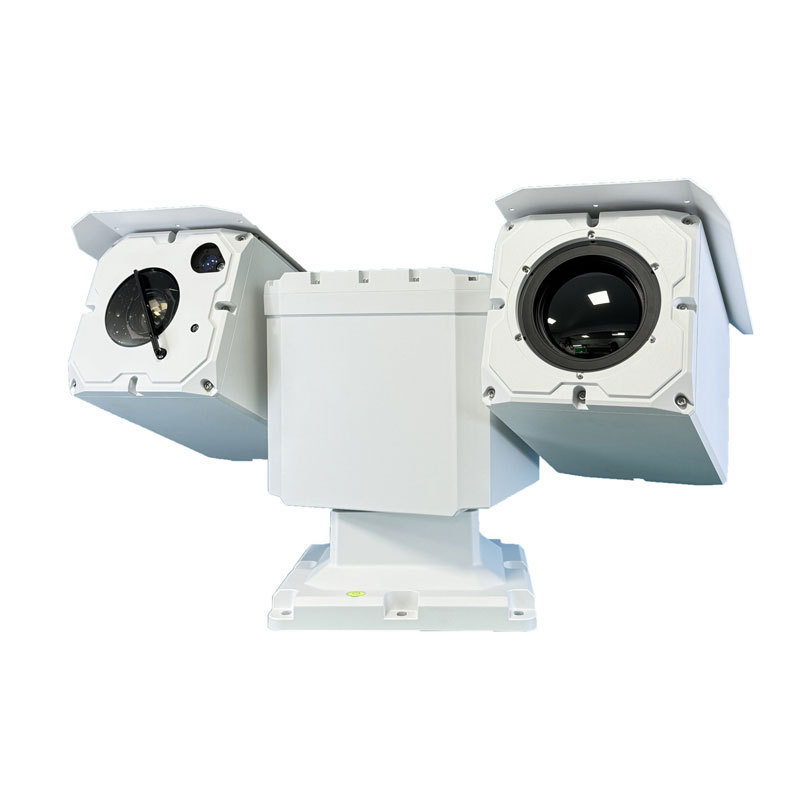

aiptz Laser ranging thermal imaging ptz camera,Integrated high-precision servo motor drive pan/tilt

aiptz Laser ranging thermal imaging ptz camera,Integrated high-precision servo motor drive pan/tilt

share

aiptz Laser ranging thermal imaging ptz camera,Integrated high-precision servo motor drive pan/tilt

  • Detail
  • Parameters




█ Features


= Support H.265/H.264 encoding and onvif

= Aluminum alloy structure design, waterproof grade IP66

= Adopt high-precision closed-loop servo motor harmonic drive structure

= Supports cold start at -40℃, can be used in cold areas, anti-freeze and dustproof

= pan and tilt speed 0.05-150°/S and 0.05-80°/S, repeatability: pan 0.003°, tilt 0.001°

= Built-in integrated 640*512 uncooled vanadium oxide infrared focal plane detector

= 360° continuous rotation in pan direction, -90°～90° in tilt direction, 255 preset positions

= All-in-one thermal imaging movement, optional 150, 180, 225mm different specifications

= Support telephoto speed limit, power-off memory, preset position call, track cruise and line scan functions

= Built-in integrated starlight 2592×1520 HD movement, 1050~1280mm different specifications are available

= Optional AI algorithms for humanoid, motor vehicle, non-motor vehicle, ship target detection and target tracking

= Optional AI algorithms for detecting fireworks, area intrusion, leaving, staying, wandering, and crossing boundaries




█ Specifications


Model

JSA-PTZSO5 Series

Camera

Image Sensor

1/1.8" Progressive CMOS

Effective Pixels

1920×108、2592×1520

Signal to noise ratio

55dB

BLC

Automatic

Day and night transition

Automatic

Focal length

10~900mm、10.5~1050mm、10.5~1280mm optional

Lens multiple

90X, 100X, 120X optical, 16X digital optional

Minimum illumination

Color：0.1Lux；Black and white：0.001Lux

Wide dynamic

120dB

Automatic control

Auto white balance, focus, exposure, noise reduction, contrast enhancement

Thermal
Imaging
Detector
Uncooled vanadium oxide infrared focal plane detector
Effective Pixels

640×512

Pixel size
12μm
Response band
8~14μm
Sensitivity
≤50mk@25℃,F1.0
Focal length
30~150mm, 30~180mm, 25~225mm zoom options
Encoding
compression

Compressed standard

H.265/H.265 High Profile

Code stream

32K～32Mbps

Network

Network protocol

PPPoE、DHCP、TCP/IP、HTTP、RTP/RTCP、RTSP、UPNP、SMTP、FTP、ONVIF

Network Interface

RJ45 10Base-T/100Base-TX*1

Management mode

B/S

Networking method

LAN/VPN/VLAN

PTZ

Drive mode

High-precision closed-loop servo motor harmonic drive structure

Rotation angle
Pan Angle 0～360°continuous rotation；Tilt Angle -90°～-90°；

Spinning speed

Pan Angle 0.05°～150°/S；Tilt Angle 0.05°～80°/S；

Preset

255

Preset Accuracy

Pan：±0.003°，Tilt：±0.001°

Auto cruise

supports

Auto scan

supports

Variable speed

Support tracking continuously variable speed

Feedback Control

Support closed-loop feedback control

Temperature control
Integrated temperature control system - supports automatic heating

Wipers

The wiper supports two working modes: automatic sensing or manual



Expansion
options

Fireworks detection
IPC and thermal imaging combined detection, false negative rate <1‰
Boundary detection
Invasion, departure, crossing the border, wandering, staying
Target tracking
detection and tracking of human, motor vehicle, non-motor vehicle, and ship targets
Detecting pixels
Minimum pixel size of detection target: 20*20 (width×height)
Linked capture
Support corresponding detection event linkage capture
Laser ranging


6 or?12 km modules available

Anti-shake module
Mechanical gyroscope electronic image stabilization + optical image stabilization
Other

Power supply

DC48V/7.3A±25%
Alarm interface
Alarm input*1，Alarm output*1
Protection level
IP66

Lightning protection

GB/T 17626.5-46kv

Temperature/Humidity

-40 ~ 70℃ / 0～90%(No condensation)

Size

945×460×485mm or customized

Weight

≈65kg


█ Order model


Order modelMain parameters
Class：Standard version
JSA-PTZSO5490X61502592×1520 /10~900mm/90X、640×512/30~150mm
JSA-PTZSO54100X61802592×1520 /10~1050mm/100X、640×512/30~180mm
JSA-PTZSO54120X62252592×1520 /10.5~1280mm/120X、640×512/25~225mm
Class：With gyroscope
JSA-PTZSO5490X6150G2592×1520 /10~900mm/90X、640×512/30~150mm; With gyroscope
JSA-PTZSO54100X6180G2592×1520 /0~1050mm/100X、640×512/30~180mm; With gyroscope
JSA-PTZSO54120X6225G2592×1520 /10.5~1280mm/120X、640×512/25~225mm; With gyroscope

Class：With laser rangefinder

JSA-PTZSO5490X6150L6K2592×1520 /10~900mm/90X、640×512/30~150mm; With 6km laser ranging
JSA-PTZSO54100X6180L6K2592×1520 /10~1050mm/100X、640×512/30~180mm; With 6km laser ranging
JSA-PTZSO54120X6225L12K2592×1520 /10.5~1280mm/120X、640×512/25~225mm; With 12km laser ranging
Class：With gyroscope and laser rangefinder
JSA-PTZSO5490X6150GL6K2592×1520 /10~900mm/90X、640×512/30~150mm; With gyroscope + 6km laser ranging
JSA-PTZSO54100X6180GL6K2592×1520 /10~1050mm/100X、640×512/30~180mm; With gyroscope + 6km laser ranging
JSA-PTZSO54120X6225GL12K2592×1520 /10.5~1280mm/120X、640×512/25~225mm; With gyroscope + 12km laser ranging


█ Order model[AI Version]


Order modelMain parameters
Class：Standard version
JSA-PTZSO5A490X61502592×1520 /10~900mm/90X、640×512/30~150mm
JSA-PTZSO5A4100X61802592×1520 /10~1050mm/100X、640×512/30~180mm
JSA-PTZSO5A4120X62252592×1520 /10.5~1280mm/120X、640×512/25~225mm
Class：With gyroscope
JSA-PTZSO5A490X6150G2592×1520 /10~900mm/90X、640×512/30~150mm; With gyroscope
JSA-PTZSO5A4100X6180G2592×1520 /0~1050mm/100X、640×512/30~180mm; With gyroscope
JSA-PTZSO5A4120X6225G2592×1520 /10.5~1280mm/120X、640×512/25~225mm; With gyroscope

Class：With laser rangefinder

JSA-PTZSO5A490X6150L6K2592×1520 /10~900mm/90X、640×512/30~150mm; With 6km laser ranging
JSA-PTZSO5A4100X6180L6K2592×1520 /10~1050mm/100X、640×512/30~180mm; With 6km laser ranging
JSA-PTZSO5A4120X6225L12K2592×1520 /10.5~1280mm/120X、640×512/25~225mm; With 12km laser ranging
Class：With gyroscope and laser rangefinder
JSA-PTZSO5A490X6150GL6K2592×1520 /10~900mm/90X、640×512/30~150mm; With gyroscope + 6km laser ranging
JSA-PTZSO5A4100X6180GL6K2592×1520 /10~1050mm/100X、640×512/30~180mm; With gyroscope + 6km laser ranging
JSA-PTZSO5A4120X6225GL12K2592×1520 /10.5~1280mm/120X、640×512/25~225mm; With gyroscope + 12km laser ranging

Note: The AI version has built-in integrated smoke detection, boundary detection and target tracking intelligent analysis algorithms


█ Size

thermal imaging cameras

laser ptz ip camera


pan tilt camera


Focal length
1050~1280mm
Camera Pixels
1080P~4K
Delivery cycle
20~30 W/D
Laser distance
6~12km
Order series
JSA-PTZSO5 Series
