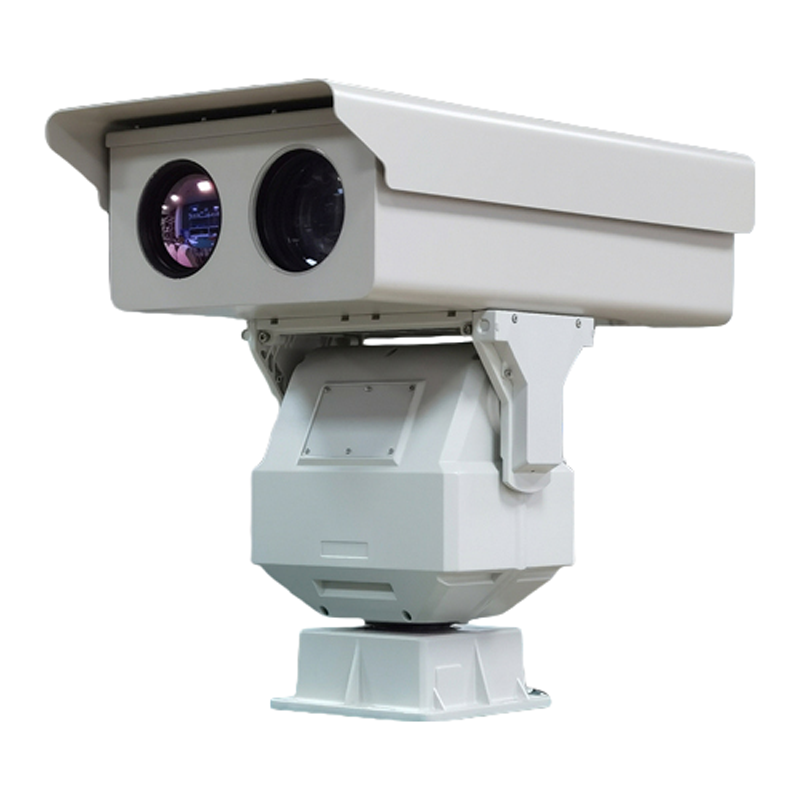

Model | JSA-8HSOZ50TH Series |
Camera | Image Sensor | 1/2.8" Progressive CMOS Or 1/1.8" Progressive CMOS |
Effective Pixels | 1920×108、2592×1520、3840×2160 Optional |
Lens multiple | 62~120 X Optics,16X Digital Optional |
Wide dynamic | 120dB |
Focal length | 610mm~1360mm Optional |
Minimum illumination | Color：0.1Lux；Black and white：0.01Lux |
Automatic control | Auto white balance, focus, exposure, noise reduction, contrast enhancement |
| Signal to noise ratio | ≥50db |
Thermal
Imaging | Detector | Vanadium Oxide Uncooled Detector |
| Effective Pixels | 384×288、640×512、1024×768、1280×1024 Optional |
| Pixel size | 17μm |
| Response band | 8~14μm |
Focal length | 100mm Focus Or 20~100、12-120、30-15015-180、20-225mm Zoom Optional |
PTZ
Network | Network protocol | Onvif,IPv4,HTTP,FTP,RTSP,DNS,NTP,RTP,TCP,UDP,IGMP,ARP,Optional RTMP AND GB/T28181 |
Compressed standard | H.265/ H.264 |
Minimum illumination | Full HD+ FULL D1 |
Data storage | Optional built-in TF card local storage |
AI | Optional：Motion Detection, Intrusion Detection Or Perimeter Detection |
Pan Angle | 0°~360° |
Tilt Angle | -60°~ 40° |
Pan Speed | 0.01°~30°/s |
Tilt Speed | 0.01°~15°/s |
Preset | 128 |
track cruise | 1 |
A/B line scan | Support |
Memory as Power off | Support |
Preset Accuracy | ±0.01° |
Telephoto speed limit | Support |
RS485 | Optional / PELCO_D |
BNC/CVBS | BNC / Optional |
Network Interface | 10/100Mb,RJ45*1 |
Other | Temperature / Humidity | -35~ 65℃/ 0～90%(No condensation) |
Power supply | AC24V/ ≤120W |
Protection level | IP66 |
Size | 588×366×525mm、588×366×600mm Or Commission |
Weight | ≈40kg |
