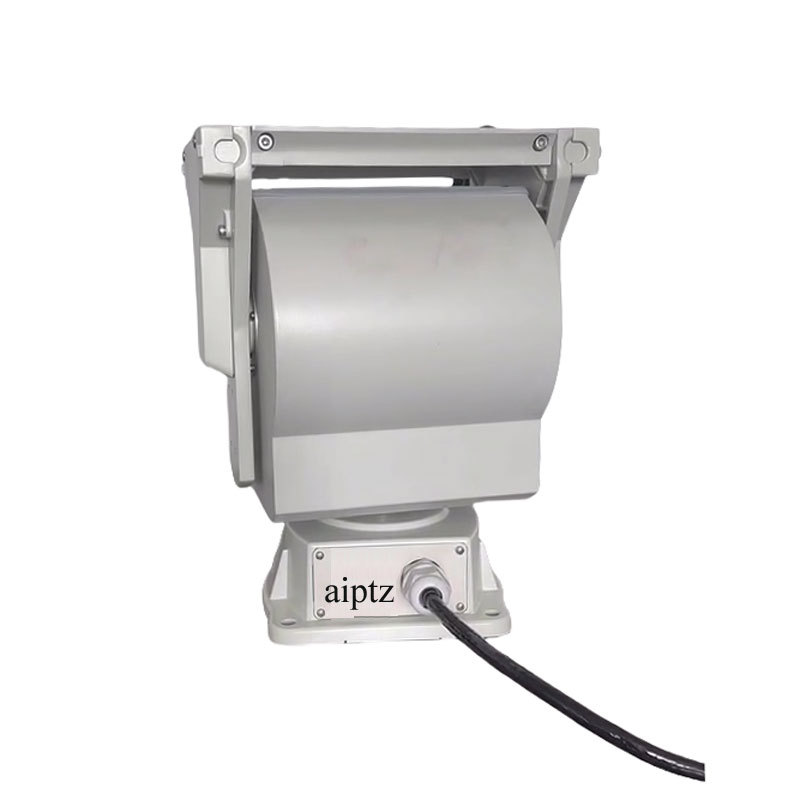

26kg outdoor pan tilt head,RS485 communication interface supports Pelco and power-off self-locking

Detail

Parameters

█ Specifications

Model	JSA-EFPTZDU51A26 Series
Max. Load	≤26kg
Bearing mode	Top load/(side load compatible)
Driving mode	Worm gear drive, timing belt drive hybrid mode
Pan Angle	0°～360°
Tilt Angle	--40°~40°
Pan Speed	0.1°～60°/S or 0.01°～60°/S
Tilt Speed	0.1°～30°/S or 0.01°～30°/S
Preset Accuracy	±0.1°，[Customizable±0.01°]
Preset	≤200
Auto cruise	Support
Interfaced	RS485, optional RS422
Protocol	Pelco_D
Baud Rate	9600
Address	1
Bottom cable	AC24V1、RS4851、RJ451、GND1；Optional other lines can be customized on demand
Top cable	AC24V1、DC12V1、RS4851、RJ451、GND*1；Optional other lines can be customized on demand
Angle return	Supports angle and azimuth data query and transmission,optional real-time transmission [RS422]
Remote control	Only the -R model integrates a wireless remote control module,and the remote control distance is ≤100m in an unobstructed environment
Network control	Only the -N model supports up/down, left/right rotation, preset position setting/deletion/calling operations based on B/S mode
Input voltage range	AC24V±20% 50/60HZ；≤80W
Operating temperature	-35℃~+65℃
Working humidity	<90%RH
Lightning protection	Input voltage range supply ≤4000V, communication and video signal ≤2000V
Prevention grade	Standard configurationIP66; Optional Anti-salt spray treatment
Weight	≈14kg
Size	249mm×230mm×315mm

█ Size

█ Order model

Model	Version	Load /Kg	Angle range		Speed range		Preset Accuracy	Angle feedback	Top outlet	Bottom cable entry
			Pan	Tilt	Pan	Tilt
JSA-EFPTZDU51A26	Standard	≤26kg	0°~360°	-40°~40°	0.1°～60°/S	0.1°～30°/S	±0.1°	Query feedback	GND1 RS4851 DC12V1/2A AC24V1/2A RJ45*1[100Mb]	GND1 RS4851 AC24V1 RJ451[100Mb]
JSA-EFPTZDU51A26-R	Remote control
JSA-EFPTZDU51A26-N	Network control
JSA-EFPTZDU51A26-H	High-precision				0.01°～60°/S	0.01°～30°/S	±0.01°
Project customization	Based on this standard model, we can customize the Pan or Tilt angle range, bottom input cable, top output cable, software, etc. according to the customer's individual needs. For customization, please contact: www.aiptz.com、aiptz@jsa-cctv.com , WeChat：A380487881
