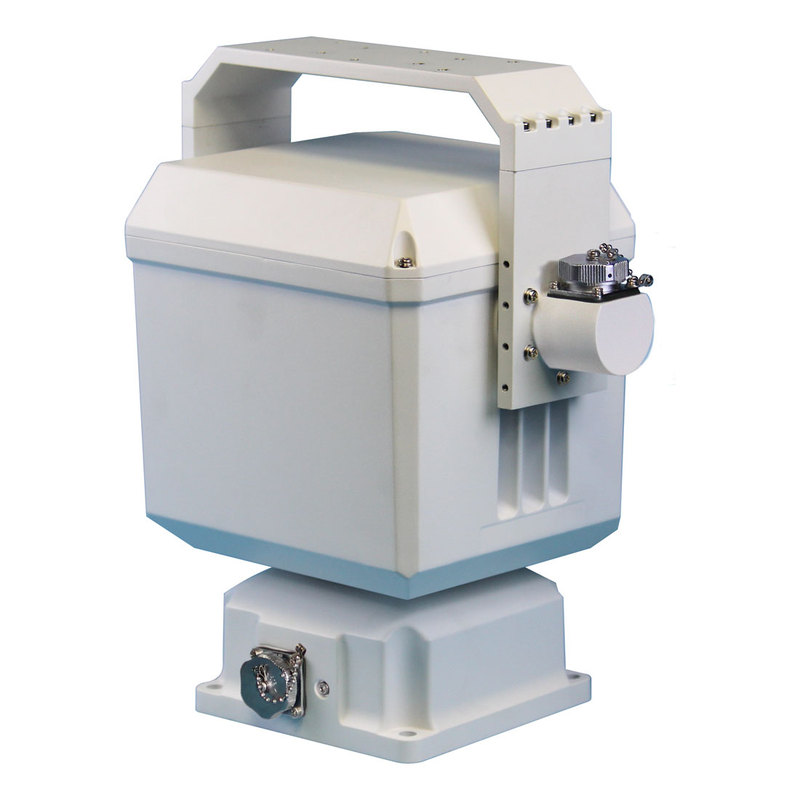

10~40Kg ±0.005° pan-tilt system,servo motor harmonic drive structure design,suppor Pelco protocol

Detail

Parameters

█ Specifications [JSA-EFPTZDUSO4S]

Model	JSA-EFPTZDUSO4S10K	JSA-EFPTZDUSO4S20K	JSA-EFPTZDUSO4S30K	JSA-EFPTZDUSO4S40K
Max. Load	≤10kg	≤20kg	≤30kg	≤40kg
Bearing mode	Top load
Driving mode	High-precision closed-loop servo motor harmonic drive-[motor integrated magnetic encoder]
Pan Angle	0°～360°	0°～360°	0°～360°	0°～360°
Tilt Angle	-90°~90°	-90°~90°	-90°~90°	-90°~90°
Pan Speed	≤60°/S	≤50°/S	≤40°/S	≤30°/S
Tilt Speed	≤40°/S	≤30°/S	≤20°/S	≤10°/S
Preset Accuracy	Relative to the equipment own Pan and Tilt 0° position: Pan ±0.005°; Tilt ±0.01°
Preset	≤200
Auto cruise	Support
Comm interface	RS422
Protocol	Pelco_D
Baud Rate	9600
Address	1
Bottom cable	DC24V/1, RS4221, GND1, straight line: 10M/100M1
Top cable	DC24V/2A1, RS4851, GND1, straight line: 10M/100M1
Angle return	Support real-time or query return of angle and azimuth data
Input voltage range	DC24V±20% 50/60HZ；≤48W
Operating temperature	-40℃~+70℃
Working humidity	<90%RH
Lightning protection	Input voltage range supply ≤4000V, communication and video signal ≤2000V
Prevention grade	IP67
Weight	≈11kg
Size	338192335mm
Customized version	Optional customization is available. For customization, please contact: www.aiptz.com、aiptz@jsa-cctv.com , WeChat：A380487881

█ Specifications [JSA-EFPTZDUSO4AS]

Model	JSA-EFPTZDUSO4SA10K	JSA-EFPTZDUSO4SA20K	JSA-EFPTZDUSO4SA30K	JSA-EFPTZDUSO4SA40K
Max. Load	≤10kg	≤20kg	≤30kg	≤40kg
Bearing mode	Top load
Driving mode	High-precision closed-loop servo motor harmonic drive-[motor integrated magnetic encoder]
Pan Angle	0°～360°	0°～360°	0°～360°	0°～360°
Tilt Angle	-90°~90°	-90°~90°	-90°~90°	-90°~90°
Pan Speed	≤60°/S	≤50°/S	≤40°/S	≤30°/S
Tilt Speed	≤40°/S	≤30°/S	≤20°/S	≤10°/S
Preset Accuracy	Relative to the equipment own Pan and Tilt 0° position: Pan ±0.005°; Tilt ±0.01°
Preset	≤200
Auto cruise	Support
Comm interface	RS422
Protocol	Pelco_D
Baud Rate	9600
Address	1
Bottom cable	DC24V/1, RS4221, GND1, straight-through cable: 100M/1000M1
Top cable	DC24V/2A1, RS4221, GND1, straight-through cable: 100M/1000M1, extension 2-core*1
Angle return	Support real-time or query return of angle and azimuth data
Input voltage range	DC24V±20% 50/60HZ；≤48W
Operating temperature	-40℃~+70℃
Working humidity	<90%RH
Lightning protection	Input voltage range supply ≤4000V, communication and video signal ≤2000V
Prevention grade	IP67
Weight	≈11kg
Size	338192335mm
Customized version	Optional customization is available. For customization, please contact: www.aiptz.com、aiptz@jsa-cctv.com , WeChat：A380487881
