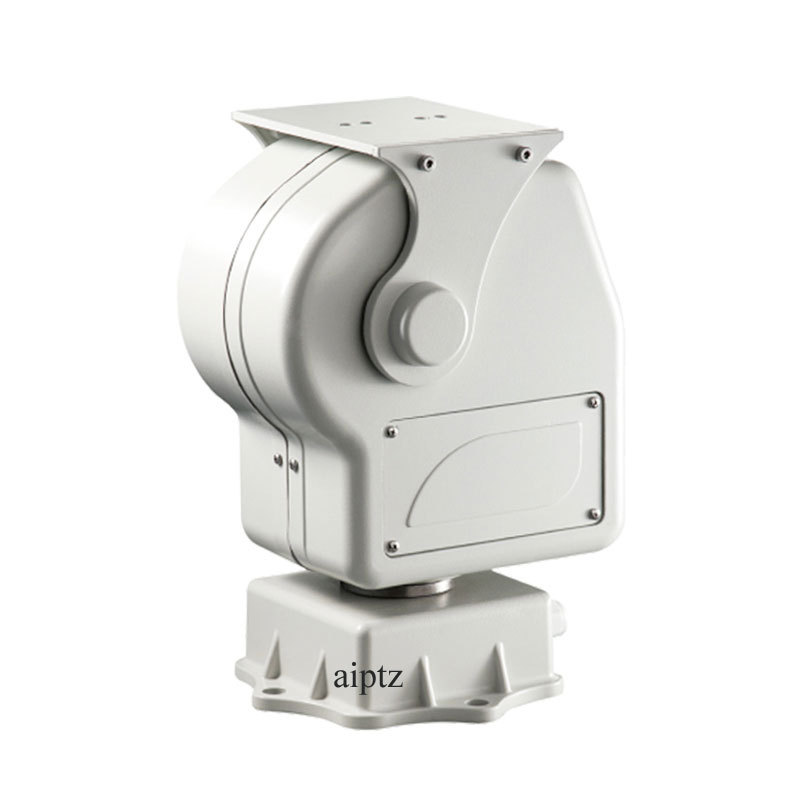

7kg Light Load pan tilt positioners,support Pelco optional network control or remote control model(1)

Detail

Parameters

█ Specifications

Model	JSA-EFPTZDU30L7
Max Load	≤7Kg
Bearing mode	Top load/(side load compatible)
Driving mode	Gear drive
Pan Angle	0°～360°
Tilt Angle	-85°～+20°
Pan Speed	1°～9°/S，Optional 0.1°～9°/S
Tilt Speed	1°～5°/S，Optional 0.1°～5°/S
Preset Accuracy	± 1° / optional ± 0.1°
Preset	≤80
Auto cruise	Support
Interfaced	RS485
Protocol	Pelco_D
Baud Rate	9600
Address	1
Bottom cable	AC24V1、RS4851、RJ451、GND1
Top cable	AC24V1、DC12V1、RS4851、RJ451、GND*1
Angle return	Not support
Remote control	Only the -R model integrates a wireless remote control module,and the remote control distance is ≤100m in an unobstructed environment
Network control	Only the -N model supports up/down, left/right rotation, preset position setting/deletion/calling operations based on B/S mode
Input voltage range	AC24V 50/60HZ；≤80W
Operating temperature	-30℃~+60℃
Working humidity	<90%RH
Lightning protection	Input voltage range supply ≤4000V, communication and video signal ≤2000V
Prevention grade	IP66
Weight	≈4.8kg
Size	183mm(L)×167mm(W)×285mm(H)

█ Size

█ Order model

Model	Version	Load /Kg	Angle range		Speed range		Preset Accuracy	Angle feedback	Top outlet	Bottom cable entry
			Pan	Tilt	Pan	Tilt
JSA-EFPTZDU30L7-S	Standard	≤7kg	0°~360°	-85°~20°	1°～9°/S	1°～5°/S	±1°	Optional	GND1 RS4851 DC12V1/2A AC24V1/1A RJ45*1[100Mb]	GND1 RS4851 AC24V1 RJ451[100Mb]
JSA-EFPTZDU30L7-R	Remote control
JSA-EFPTZDU30L7-N	Network control
JSA-EFPTZDU30L7H-S	Standard	≤7kg	0°~360°	-85°~20°	0.1°～9°/S	0.1°～5°/S	±0.1°	Optional	GND1 RS4851 DC12V1/2A AC24V1/1A RJ45*1[100Mb]	GND1 RS4851 AC24V1 RJ451[100Mb]
JSA-EFPTZDU30L7H-R	Remote control
JSA-EFPTZDU30L7H-N	Network control
Project customization	Based on this standard model, we can customize the Pan or Tilt angle range, bottom input cable, top output cable, software, etc. according to the customer's individual needs. For customization, please contact: www.aiptz.com、aiptz@jsa-cctv.com , WeChat：A380487881
