g Description and characteristics

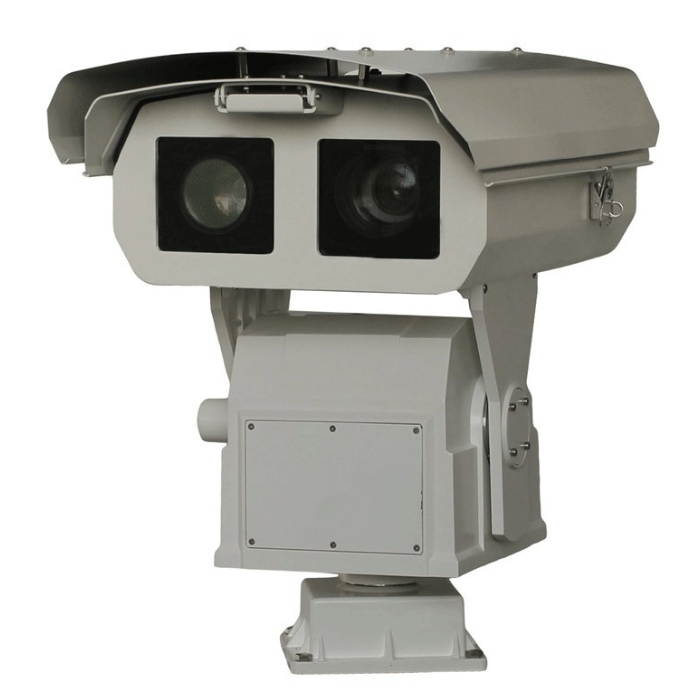

This series of network HD laser night vision heavy-duty PTZ cameras integrates the leading optical and mechatronic technologies in many industries, using infrared laser illuminators with precise tracking function, with 1080P~4K HD integrated machine movement and telephoto HD lens. The integrated surveillance camera monitors target activity within a range of 500 to 12,000 meters in full HD in a completely dull environment. The machine uses a unique laser drive technology, the laser net output power is large, the service life is long, and the nominal monitoring distance is truly achieved. When the camera is zoomed, the laser is zoomed in sync with the camera, automatically adapting to the camera's field of view without manual intervention. At the same time, the machine has a two-dimensional mechanism for electrically adjusting the laser optical axis, which causes the displacement of the laser irradiation position due to transportation vibration and the like, and does not need to be corrected before installation and construction, and the user can remotely adjust the remote control. Spot storage technology, users can adjust the size and intensity of the illumination spot as needed, and can store memory; camera module secondary depth development, night vision effect is better, the focus speed is ideal and accurate.

Integrated high-speed and large-torque precision head, flexible control, users can achieve horizontal 360°, vertical 90° with horizontal speed of 0.01°/sec to 40°/sec and vertical speed of 0.01°/sec to 15°/sec. No blind zone monitoring. Both the PTZ camera and the laser lens can be preset, with 128 preset points, automatic cruise scanning, and scheduled execution of the user's scheduled scene. The preset point is positioned accurately, the memory function is reliable, and the power is not lost. The whole machine has IP66 protection grade, the structure is firm and fully sealed, and the surface is resistant to oxidation and salt spray. Anti-hurricane, can work normally at a wind speed of 150 kilometers per hour. Remote defrosting, anti-fogging function, waterproof and high temperature resistance, can ignore all kinds of harsh environments around the clock.

g Specifications

g Product Size

g Application field

Forest fire prevention, airport runway, urban high-altitude observation, land and resources conservation, oilfield burglary, port terminal, waterway, railway transportation, environmental monitoring, border defense, fishery management, mariculture, water conservancy, maritime search and rescue, wetland protection, etc. place.

g Camera monitoring distance reference value correspondence table
