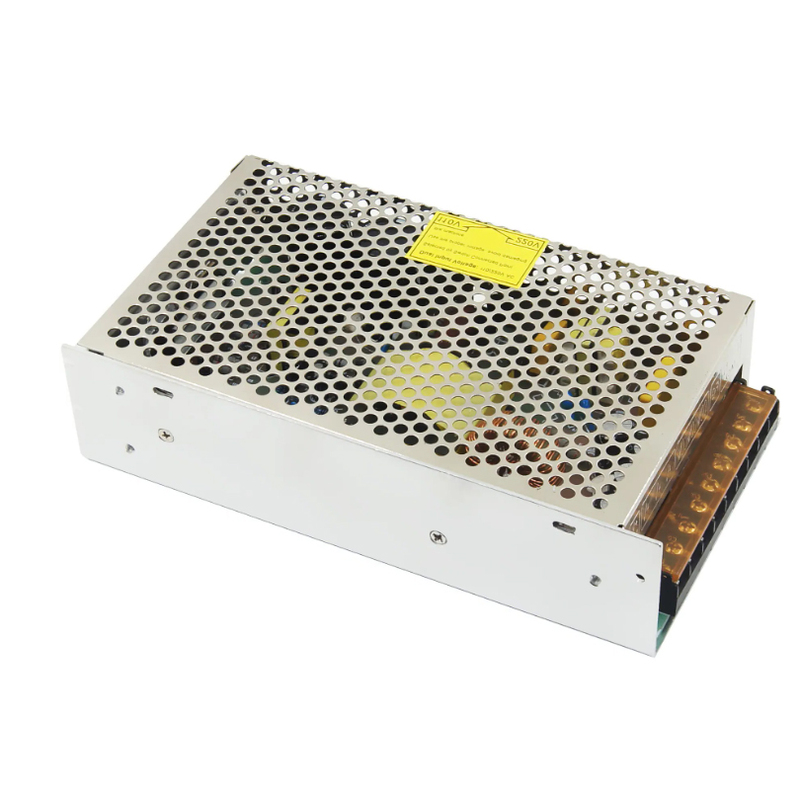

DC48V power adapter, suitable for applications such as dual-spectrum PTZ cameras and Pan Tilt Head

DC48V power adapter, suitable for applications such as dual-spectrum PTZ cameras and Pan Tilt Head

share

DC48V power adapter, suitable for applications such as dual-spectrum PTZ cameras and Pan Tilt Head

  • Detail
  • Parameters



█ Specifications



Model
PDC48V5A
PDC48V8A
PDC48V12A
PDC48V16A
Output   DC voltage
DC48V
DC48V
DC48V
DC48V
Rated current
5A
8A
12A
16A
Rated power
250W
350W
600W
800W
Voltage accuracy

±1%

Adjustment range
±10%
Input Voltage range
90~132V/AC、180~264V/AC 47Hz~63Hz
Working current
<4A 110V/AC
      <2A 230V/AC
<7A 110V/AC
   <3A 230V/AC
<9A 110V/AC
   <4.5A 230V/AC
<13A 110V/AC
   <7.5A 230V/AC
Electric shock
110V/AC   25A, 230V/AC 50A
Protect Overload protection
105%~135% Type: constant current output, +V0 drops to the undervoltage point, cut off the output, reset: power on again
Overvoltage protection
115%~145%
Under voltage protection
40%~45%VOUT
Over temperature protection
RTH3：≥65℃ Fan starts，≤55℃ Fan off，≥85℃ Turn off output
Other         Working temperature
-10℃~+50℃ ，20%~90%RH
Working humidity
20%~90%RH
Storage temperature
-20℃~+85℃
Storage humidity
10%~95%RH
Size
199*99*38mm
215*115*50mm
241*125*65mm
Weight
≈780g
≈980g
≈1300g

Delivery cycle
1~4 W/D
Order model
PDC48V Series
