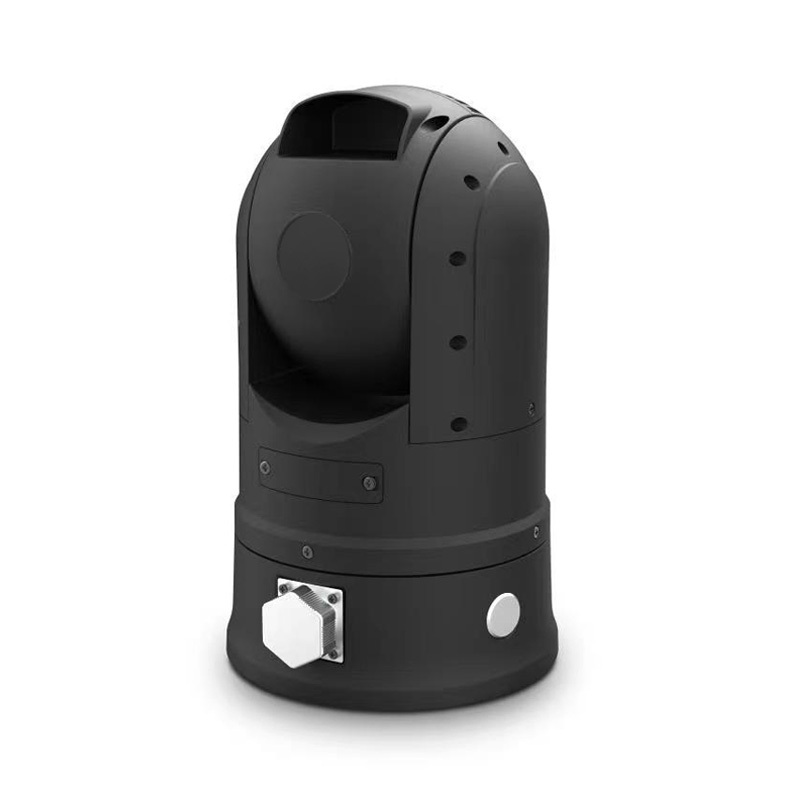

█ Specifications Model | JSA-8HSOT13023X4G | Camera
| Image Sensor | 1/2.8" Progressive CMOS | Effective Pixels | 1920(H)×1080(V) | Lens multiple | 23X | Wide dynamic | 120dB | Focal length | 4~118mm | Minimum illumination | Color：0.1Lux；Black and white：0.01Lux | Automatic control | Auto white balance, focus, exposure, noise reduction, contrast enhancement | Signal to noise ratio | ≥50db | Function | LED | 850nm LED light； Irradiation distance≤80m | Network protocol | Onvif,IPv4,HTTP,FTP,RTSP,DNS,NTP,RTP,TCP,UDP,IGMP,ARP, Optional RTMP and GB/T28181 | Compressed standard | H.265/ H.264 | Multiple code streams | Full HD + FULL D1 | Audio | G711 | Network Interface | 10/100M*1 | Data storage | Support TF card ≤ 256G [standard without card] | 4G Module | *1 [standard without sim card] | | WIFI module | IEEE 802.11a/b/g/n/ac 2.4G&5G；Built-in AP hotspot | Integrated | Support ONVIF/RTSP/RTMP protocol, can be integrated with NVR or management platform | Pan Angle | 0°~360° | Tilt Angle | -30°~ 90° | Pan Speed | 0.01°~100°/s | Tilt Speed | 0.01°~60°/s | Preset | 200 | Cruise | 1 | A/B line scan | Support | Memory as Power off | Support | Preset Accuracy | ±0.01° | Telephoto speed limit | Support | Other | Temperature / humidity | -35 ~55℃ / 0～90%(No condensation) | Power supply | DC12.6V5A, charging adapter | lithium battery | DC12.6V 120Wh (9*18650 batteries)，Standby time 5~10 hours | Protection level | IP66 | Size | 165×124× 230 | Weight | Net weight ≈3kg; packing 8kg with safety box [including tripod] |
█ Size
█ Packing and wgight
█ Network topology diagram of different usage modes
█ B/S operation interface █ Product details
|
