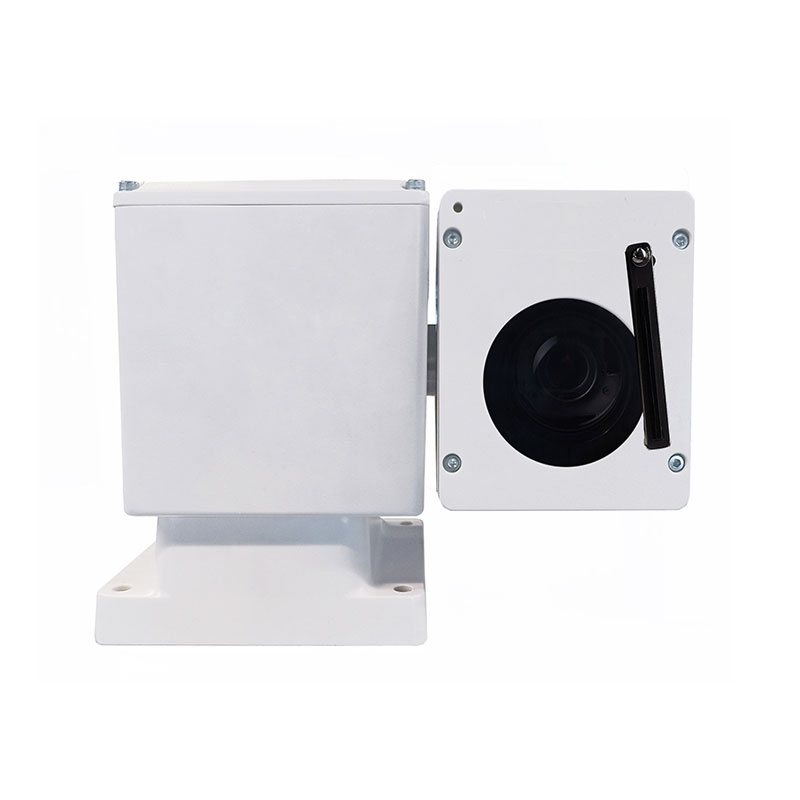

aiptz Low-power PTZ camera,suitable for car pan tilt head-AI tilt vs pan-robot camera and other,etc

Detail

Parameters

█ Specifications

Model		JSA-8ELECPTZ1C Series
Camera	Image Sensor	1/2.8" Progressive CMOS or 1/1.8" Progressive CMOS
	Effective Pixels	1920×1080、2592×1520、3840×2160 Optional
	Lens multiple	26~32X Optics,16X Digital Optional
	Wide dynamic	120dB
	Focal length	120mm~150mm
	Minimum illumination	Color：0.1Lux；Black and white：0.01Lux
	Automatic control	Auto white balance, focus, exposure, noise reduction, contrast enhancement
	Signal to noise ratio	≥50db
Function	LED fill light	850nm LED light； Irradiation distance≤80m
	Network protocol	Onvif,IPv4,HTTP,FTP,RTSP,DNS,NTP,RTP,TCP,UDP,IGMP,ARP, Optional RTMP and GB/T28181
	Compressed standard	H.265/ H.264
	Multiple code streams	Full HD + FULL D1
	Data storage	Optional Built-in TF card local storage
	Insight	Optional：Motion detection, intrusion detection or perimeter detection
	Pan Angle	0°~360°
	Tilt Angle	-90°~ 90°
	Pan Speed	0.01°~60°/s
	Tilt Speed	0.01°~40°/s
	Preset	200
	Cruise	1
	A/B line scan	Support
	Memory as Power off	Support
	Preset Accuracy	±0.01°
	Telephoto speed limit	Support
	RS485	Optional output/ Support PELCO_D protocol
	BNC Output	BNC*1 / Optional
	Network Interface	10/100M*1
Other	Temperature / humidity	-35 ~ 70℃ / 0～90%(No condensation)
	Power supply	DC12V/2A, <15W
	Standby power	A-1.2W[Independent Pan Tilt Head]；B-3.24W[ Camera included ]；C、9.24W[ Camera included / IR LED ]
	Protection level	IP66
	Size	217×175×155mm
	Weight	≈3.6kg

█ Order model

Ordering specification model	Camera parameters	LED light parameters	Remark
JSA-8ELECPTZ1C26X2	1920×1080/5~120mm/26X	50~80m	2MP
JSA-8ELECPTZ1C26X4	2592×1520/5~120mm/26X		4MP
JSA-8ELECPTZ1C32X2	1920×1080/6~150mm/32X		2MP
JSA-8ELECPTZ1C32X4	2592×1520/6~150mm/32X		4MP
JSA-8ELECPTZ1C32X4K	3840×2160/6~150mm/32X		8MP
Customized models	Customization is made based on the standard price according to customer needs; contact customization->aiptz@jsa-cctv.com, WeChat: A380487881
