█ Specifications

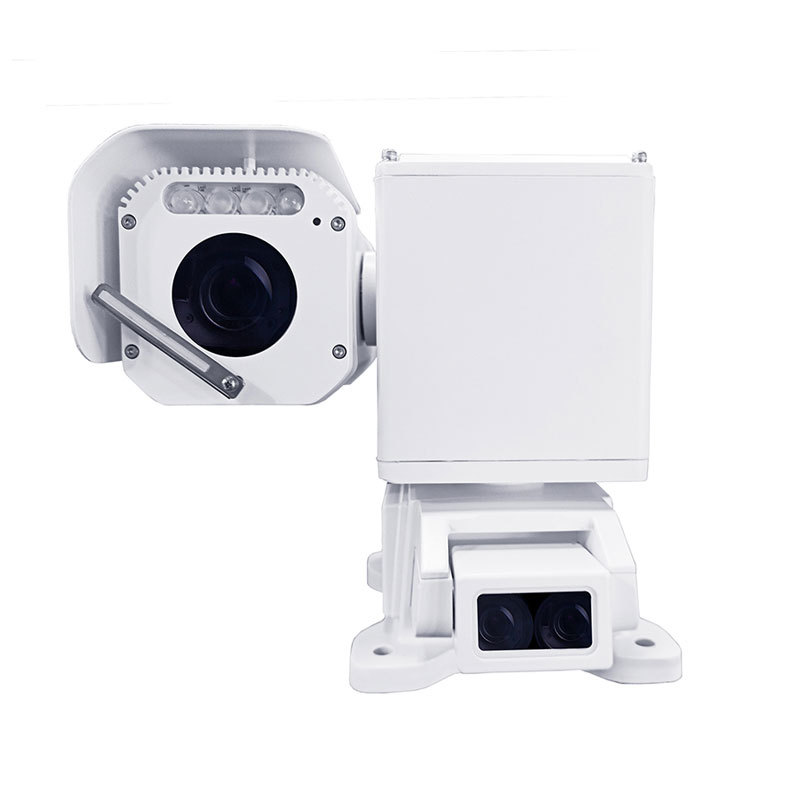

Model | JSA-8ELECPTZ3C Series | Camera
| Image Sensor | 1/2.8" Progressive CMOS or 1/1.8" Progressive CMOS | Effective Pixels | 1920×1080、2592×1520、3840×2160 Optional | Lens multiple | 26~32X Optics,16X Digital Optional | Wide dynamic | 120dB | Focal length | 120mm~150mm | Minimum illumination | Color：0.1Lux；Black and white：0.01Lux | Automatic control | Auto white balance, focus, exposure, noise reduction, contrast enhancement | | Signal to noise ratio | ≥50db | Line channel | Daytime： 4608(H)×3456(V) | Night： 1920(H)×1080(V) | Function | LED fill light | 850nm LED light； Irradiation distance≤120m | Network protocol | Onvif,IPv4,HTTP,FTP,RTSP,DNS,NTP,RTP,TCP,UDP,IGMP,ARP, Optional RTMP and GB/T28181 | Compressed standard | H.265/ H.264 | Multiple code streams | Full HD + FULL D1 | Data storage | Optional Built-in TF card local storage | Insight | Optional：Motion detection, intrusion detection or perimeter detection | Pan Angle | 0°~360° | Tilt Angle | -90°~ 90° | Pan Speed | 0.01°~60°/s | Tilt Speed | 0.01°~40°/s | Preset | 200 | Cruise | 1 | A/B line scan | Support | Memory as Power off | Support | Preset Accuracy | ±0.01° | Telephoto speed limit | Support | RS485 | Optional output/ Support PELCO_D protocol | BNC Output | BNC*1 / Optional | Network Interface | 10/100M*1 | Other | Temperature / humidity | -35 ~ 70℃ / 0～90%(No condensation) | Power supply | DC12V/2A, <15W | Protection level | IP66 | Size | 263×242×208mm | Weight | ≈5kg |
█ Order model
| Ordering specification model | Camera parameters | LED light parameters | Remark | | JSA-8ELECPTZ3C26X2 | 1920×1080/5~120mm/26X | 50~80m | 2MP | | JSA-8ELECPTZ3C26X4 | 2592×1520/5~120mm/26X | 4MP | | JSA-8ELECPTZ3C32X2 | 1920×1080/6~150mm/32X | 2MP | | JSA-8ELECPTZ3C32X4 | 2592×1520/6~150mm/32X | 4MP | | JSA-8ELECPTZ3C32X4K | 3840×2160/6~150mm/32X | 8MP | | Customized models | Customization is made based on the standard price according to customer needs; contact customization->aiptz@jsa-cctv.com, WeChat: A380487881 |
█ Size  |
