█ Product Brief and Features

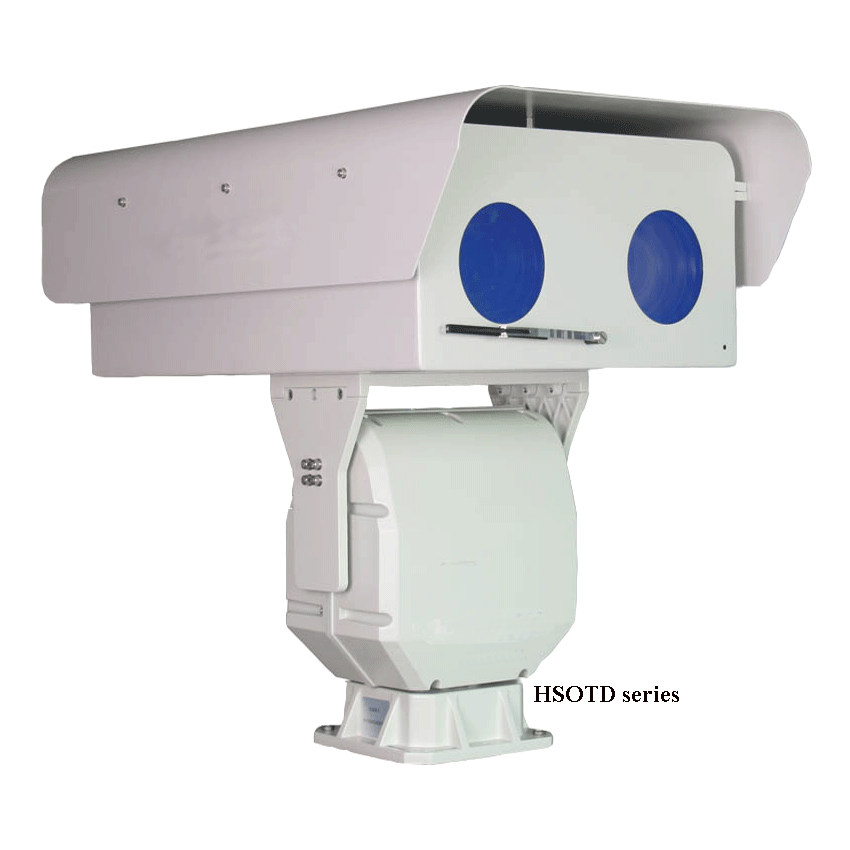

This series of high-definition laser night vision heavy-duty PTZ cameras integrate leading optical-mechanical-electronic integration technologies in multiple industries, adopt infrared laser illuminators with precision tracking functions, cooperate with 1080P~4K HD integrated movement and telephoto HD lenses The integrated surveillance camera can monitor the target activity within a distance of 20~12000 meters in full HD in a completely dark environment. The night search distance of the laser is 10~4000 meters. The machine uses a unique laser drive technology. The laser has a large net output power and a long service life. It truly reaches the nominal monitoring distance. When the camera zooms, the laser and the camera zoom simultaneously, automatically adapting to the angle of view of the camera without manual intervention. At the same time, the machine has a two-dimensional mechanism that electrically adjusts the laser optical axis. The deviation of the laser irradiation position due to transportation vibration and other reasons does not need to be corrected before installation and construction. The user can adjust it remotely. Spot storage technology, users can adjust the size and intensity of the illumination spot according to their needs, and can store memory; the secondary depth development of the camera module, the night vision effect is better, and the focusing speed is ideal and accurate.
Integrated high-speed large-torque precision gimbal, flexible control, users can use a horizontal speed of 0.01°/sec to 12°/sec and a vertical speed of 0.01°/sec to 8°/sec to achieve complete 360° horizontal and 90° vertical No blind spot monitoring. Both PTZ camera and laser lens can be preset, with 200 preset points, automatic cruise scanning, and scheduled execution of user-defined scenes. The preset position is accurate, the memory function is reliable, and the power is not lost. The whole machine has IP66 protection grade, the structure is strong and fully sealed, and the surface is sprayed with anti-oxidation and antisalt spray. Resistant to hurricanes, it can work normally at wind speeds of 150 kilometers per hour. Remote defrosting, antifogging function, good waterproof and high and low temperature resistance characteristics, can ignore all kinds of harsh environments to work around the clock.
Forest fire prevention, airport runways, urban high-altitude lookouts, land and resources protection, oil field theft prevention, port terminals, waterways, railway transportation, environmental monitoring, border defense, fishery management, marine culture, water conservancy flood control, maritime search and rescue, wetland protection, vehicle-mounted, ship-borne , Roads and other places monitored continuously day and night.
