4 million pixels 20 times high-definition zoom movement module with a focal length of 5.4-108mm, sup
4 million pixels 20 times high-definition zoom movement module with a focal length of 5.4-108mm, sup
4 million pixels 20 times high-definition zoom movement module with a focal length of 5.4-108mm, sup
- Detail
- Parameters
- Features

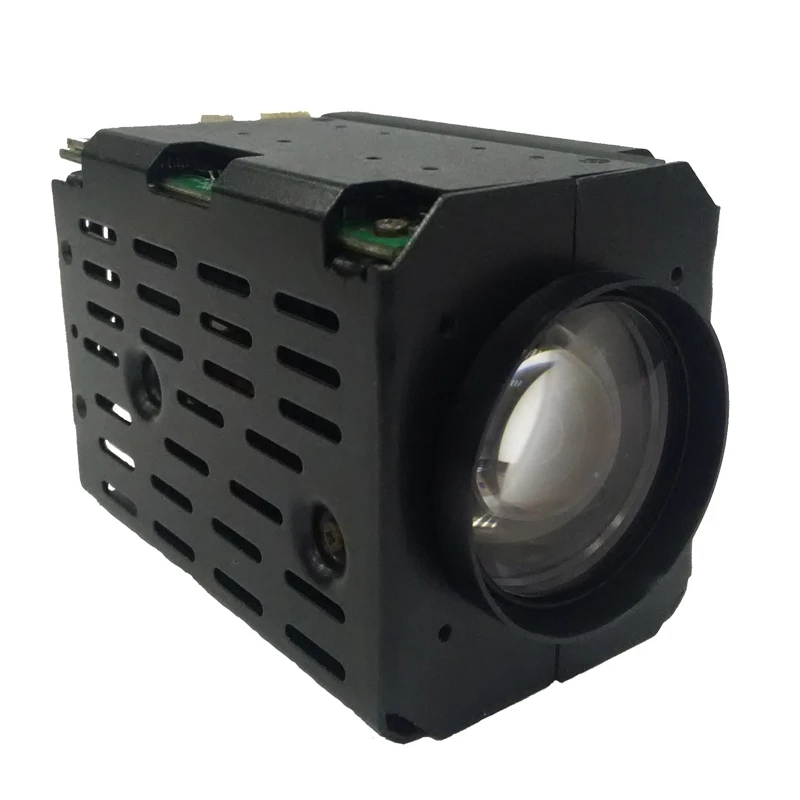

█ Product Image
█ Features
* 20x optical zoom, focal length is 5.4-108mm
* Automatic ultra-wide dynamic, 0 ~ 120 digital adjustment
* H.265 encoding achieves low bit rate, fast and accurate focusing
* Support 16 times digital zoom, support 2D / 3D digital noise reduction
* 4 million pixels, progressive scan CMOS, maximum resolution 2592x1520
* Support strong light suppression, area blocking, defogging, corridor mode, etc.
* Convenient access to dome camera, PTZ, mainstream platform and other equipment
* Supports up to 128G MicroSD card local storage, rich interface, convenient function expansion
█ Product Size
█ Definition of wiring
Optical | Sensor | 1/2.9" Progressive CMOS |
Focal Length | 5.4-108mm，20X Optical | |
Aperture Value | F1.6-F4.8 | |
View Angle | Horizontal: 50.2-2.9° (Min.-Max.) | |
Min. Distance | 10mm-1500mm (Min.-Max.) | |
Zoom Speed | 3s | |
D/N Shift | ICR, Auto, Color, White/Black, Timing, Threshold Control, Rotation | |
Scanning | Progressive Scanning | |
Parameter | Resolution | Main Stream：50HZ:25fps(2592x1520，2304x1296，1920x1080，1280x720) 60HZ:30fps(2592x1520，2304x1296，1920x1080，1280x720) Sub Stream：50Hz: 25fps(720×576,352×288)、60Hz: 30fps(720×480,352×288) |
Illumination | 0.05Lux @(F1.5,AGC ON)color, 0.005Lux @(F1.5,AGC ON)B/W | |
Video Output | Network coding | |
Image Adjustment | Saturation, Brightness, Contrast, Sharpness, Hue Adjustment | |
Image Setting | Movement function can be adjusted through client or IE browser | |
General parameters | Privacy Mask, Anti Flicker, Defog, Corridor Mode, Mirror, Rotate, BLC, HLC, Defect Point Compensation, Watch mode, Power off Memory | |
ROI | 4 areas | |
Focus Mode | Auto/Manual/One Time Focus | |
Exposure Mode | Auto/Aperture priority/Shutter Priority/Manual | |
Shutter Time | 1/25~1/100000 | |
White Balance | Auto 1/Auto 2/Indoor/Outdoor/Manual/Sodium Lamp/White Lamp | |
WDR | Super WDR, Auto WDR, 0-120 digital adjustment | |
DNR | 2D / 3D | |
Digital Zoom | 16 X | |
System Mode | PAL/NSTC | |
Network | Storage | Support MicroSD storage 128G (recommended to use class10) |
Protocol | TCP/IP，HTTP，DHCP，DNS，DDNS，RTP，RTSP，PPPoE SMTP，NTP，UPnP，SNMP，FTP，802.1x，QoS，HTTPS，RTMP | |
Compatibility | ONVIF2.4, GB / T28181, active registration, CGI | |
Protocol | Main Stream：400万/300万/1080P/720P；Sub Stream：D1/CIF | |
Audio Compression | G.711A、G.711U、G.726、AAC | |
Video Compression | H.265/H.264 | |
General | Heartbeat, Password Protection, Black/White list | |
Interface | Interface | 36pin FFC (RJ45, RS485, RS233, CVBS, Alarm In/Out, Audio In/Out, USB, Power) |
Communication | RS232, RS485, Pelco, VISCA | |
Others | Working Temp. | -10℃~60℃ Humidity≤95% (non-condensing) |
Power | DC12V±10% | |
Power Cons. | 2.5W~4.5W | |
Dimension | 50*100*60mm |
█ Typical application of network video surveillance system
█ Typical application of video surveillance system solutions for chain institutions
█ Typical application of video surveillance software in system industry projects
█ Integrate networking applications with third-party platforms
█ Specifications
